HP8G-7D8G-CD-SFF Active
Suspended Substrate High Pass Filter
Buy Now

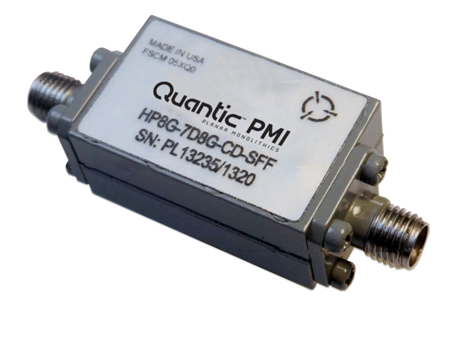

Quantic PMI Model HP8G-7D8G-CD-SFF is a suspended substrate high pass filter having a passband of 8 to 22 GHz. The Cut-Off Frequency is 7.8 GHz with a passband insertion loss of 1.5 dB. This model provides over -35 dB of rejection at 7.5 GHz. Precision machined housing and silver plated to provide the highest possible Q. Package size is 1.15' x 0.70" x 0.50" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 8 to 22 |
| Cut-Off Frequency (GHz): | 7.8 |
| Passband Insertion Loss (dB): | 1.5 dB Max |
| Passband VSWR: | 2.0:1 Max - Measured 1.9:1 |
| Rejection: | -35 dB Typ @ 7.5 GHz, -50 dB Min @ 5.6 GHz |
| Input Power: | 50 W |
| Connectors: | SMA Female |
| Size: | 1.15" x 0.70" x 0.50" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
