HP8G-7D8G-CD-SMF Active
High Pass Filter
Additional Documents
- Product Feature
- Test Report - 6/28/18
- PL22908 - Unit Data
- PL22909 - Unit Data
- PL22910 - Unit Data
- PL22911 - Unit Data
- PL22912 - Unit Data
- PL22913 - Unit Data
- PL22914 - Unit Data
- PL22915 - Unit Data
- PL22916 - Unit Data
- PL22917- Unit Data
- PL22918 - Unit Data
- PL22919 - Unit Data
- PL22920 - Unit Data
- PL22921 - Unit Data
- PL22922 - Unit Data
- PL22924 - Unit Data
- PL22925 - Unit Data
- PL22926 - Unit Data
- PL22927 - Unit Data
- PL31669 - Unit Data
- PL31670 - Unit Data
- PL31671 - Unit Data
- PL31672 - Unit Data
- PL31673 - Unit Data
- PL31674 - Unit Data
- PL31675 - Unit Data
- PL31676 - Unit Data
- PL31677 - Unit Data
- PL31678 - Unit Data

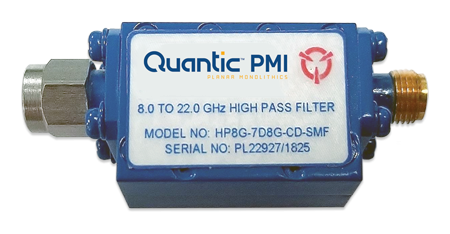

Quantic PMI Model: HP8G-7D8G-CD-SMF is a High Pass Filter with a Passband of 8 to 22 GHz. The Compact 1.15" x 0.70" x 0.50" housing is outfitted with SMA Connectors (Male Input, Female Output) and is Silver Plated to provide the highest possible Q. Other specifications include 3 dB Cutoff of 7.6 GHz; input power 5 W typical, 10 W maximum; ripple 0.35 dB; passband VSWR: 2.0:1; and -35 dB Typ @ 7.5 GHz rejection.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 8 to 22 |
| Cut-Off Frequency (GHz): | 7.8 @ 3 dB |
| Passband Insertion Loss (dB): | 1.5 dB Max |
| Passband VSWR: | 2.0:1 Max |
| Rejection @ 5.6 GHz: | -50 dB Min |
| Rejection @ 7.5 GHz: | -35 dB Typ |
| Passband Ripple: | 0.5 dB Peak to Peak Max |
| Input Power: | 5 W Typ, 10 W Max |
| Impedance: | 50 Ohm In/Out |
| Connectors: | Input SMA Male Output: SMA Female |
| Size: | 1.15" x 0.70" x 0.50" |
| Weight: | 1 oz Typ |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 55 °C to +85 °C |
| Temperature (Storage): | 65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Salt Fog: | MIL-STD-202, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
| Temperature Cycle: | MIL-STD-202, Method 107 |
