HPF-4G18G-CD-SFF Active
High Pass Filter
Buy Now
Additional Documents
- Product Feature
- 3D Model
- S-Parameters (.s2p)
- Broad-Band Plot (10 to 40 GHz)
- 80W CW - Test Results
- PL1326 - Unit Data
- PL8134 - Unit Data
- PL8135 - Unit Data
- PL21228 - Unit Data
- PL34681 - Unit Data
- PL35944 - Unit Data
- PL37235 - Unit Data
- PL37236 - Unit Data
- PL40318 - Unit Data
- PL40319 - Unit Data
- PL40320 - Unit Data
- PL40321 - Unit Data
- PL58459 - Unit Data
- PL58460 - Unit Data
- PL58461 - Unit Data
- PL59454 - Unit Data
- PL59455 - Unit Data

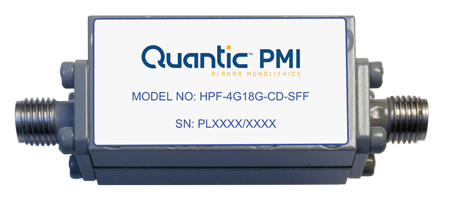

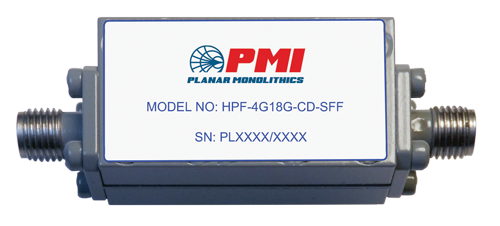

PMI Model HPF-4G18G-CD-SFF is a high pass filter having a passband of 5.5 to 18 GHz. Cut-Off Frequency is 5.5 GHz with a passband insertion loss of 1.5 dB from 6 to 18 GHz. This model provides -60 dB rejection. The package size is 1.43" x 0.79" x 0.50" and contains SMA Female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Passband Frequency (GHz): | 6 to 18 |
| Cut-Off Frequency (GHz): | 5.5 |
| Passband Insertion Loss (dB): | 1.5 dB Max |
| Passband VSWR: | 2.0:1 Max - Measured 1.82:1 |
| Rejection: | -60 dB - Measured 66 dB |
| Input Power: | 50 W CW Min |
| Connectors: | SMA Female |
| Size: | 1.43" x 0.79" x 0.50" |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -55 ºC to +85 ºC |
| Temperature (Storage): | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Salt Fog: | MIL-STD-202F, Method 107D Cond. A |
| Fungus: | MIL-STD-810C, Method 508.2 |
| Temperature Cycle: | MIL-STD-202F, Method 107 |
