HPF-8G18G-SFF Preliminary
High Pass Filter
Quantic PMI Model HPF-8G18G-SFF is a high pass filter designed to pass signals between 8 and 18 GHz that offers 45 dB rejection @ 7.6 GHz with a passband insertion loss of 2 dB. Package size 1.26" x 0.99" x 0.39" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Passband Frequency (GHz): | 8 to 18 |
| Passband Insertion Loss (dB): | 2 dB Max |
| Rejection: | 45 dB Min @ 7.6 GHz |
| Operating Input Power: | 10 W Max |
| VSWR: | 1.8:1 Max |
| Connectors: | SMA Female |

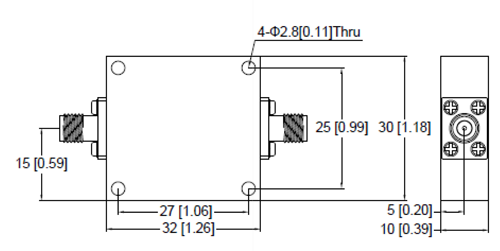

| Size: | 1.26" x 0.99" x 0.39" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | -45 ˚C to +85 ˚C |
| Temperature (Storage): | -45 ˚C to +85 ˚C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
