IFDLVA-400M1G-45dB-SL Preliminary

AC coupled CW Immune Intermediate Frequency Detector Log Video Amplifier (IFDLVA)

IFDLVA-400M1G-45dB-SL
Product Feature

Quantic PMI Model IFDLVA-400M1G-55dB-SL is an AC coupled CW immune intermediate frequency detector log video amplifier (IFDLVA) that operates over the 0.4 to 1 GHz frequency range that has a dynamic range of 45 dB with differential video outputs. Features innovative GaAs technology which provides stunning performance and reliability in an ultra compact package (1.75" x 1.25" x 0.40") making it an optimum solution for high speed channelized receiver applications.

Product Specifications

General Parameters:
Status: Preliminary
CW Immune (Yes/No): Yes
Frequency Min (GHz): 0.4
Frequency Max (GHz): 1
TSS (dBm): -50 Max
Log Slope (mV/dB): 45 ± 5%
Log Range (dBm): -45 to 0
Rise Time: 50 ns Max, Input Rise Time <10 ns
Power Supply: +12 to +15 V, 170 mA Max (No Load),
-12 to -15 V, 70 mA Max (No Load)
Duty Cycle: 10% @ Min Pulse Width
Frequency Flatness: ±1.5 dB Max
VSWR: 1.5:1 Typ, 1.7:1 Max
VSWR (Measured): 1.5:1 Typ, 1.7:1 Max
Video Load (Ohms): 93
Pulse Range: 50 ns to CW
DC Offset: 0.2 V ±1.5 dB Max
Dynamic Range: -45 dBm to 0 dBm
Tangential Sensitivity: -50 dBm Max
Connectors: SMA (F) Removable

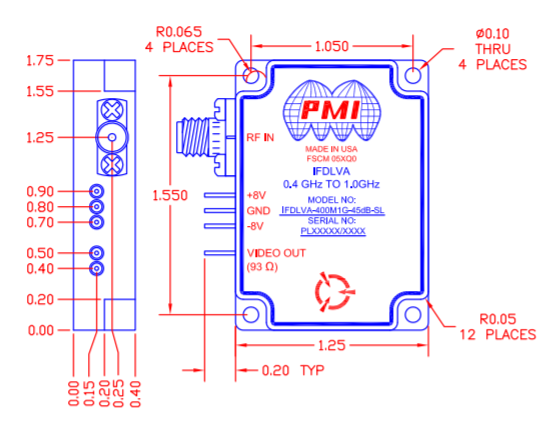

Size: 1.75" x 1.25" x 0.40"
Finish: Gold Plated
Export Classification (ECCN): EAR99
Environmental Ratings:
Operating Temperature: -40 ºC to +85 ºC
Temperature Cycle: MIL-STD-202, Method 107D Cond. A
Humidity: MIL-STD-202, Method 103B Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
