| General Parameters: |
|---|
| Status: | Active |
|---|

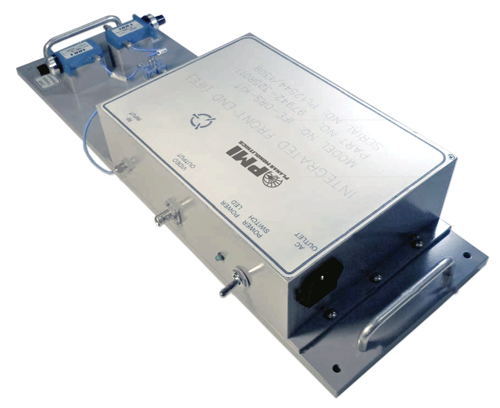

| Product Description: | Quantic PMI Model No. IFE-DRS-KIT is an Integrated Front End (IFE) unit that consists of a low noise amplifier, RF Log Detector, and a low noise video amplifier. This integrated unit was designed to support a phased array radar automated test set. |
|---|
| Item No.: | 21 |
|---|
| RF Input Power Level: | 0 dBm Max |
|---|
| Frequency Range: | 9.0 to 10.0 GHz |
|---|
| Frequency Min: | 9.0 GHz |
|---|
| Frequency Max: | 10.0 GHz |
|---|
| Output Flatness vs Frequency (at 4 VDC Output): | ±1 dB |
|---|
| Video Output (4 VDC): | RF Signal shall be wothin the range of -40 dBm and -48 dBm |
|---|
| Power Supply: | 115 ± 10% VAC |
|---|
| Size: | Unit: 11.00" x 7.00" x 3.00"
Unit w/mounting plate: 21.25" x 7.00" x 3.38" |
|---|
| Finish: | Painted Gray |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | 25 ± 5 °C |
|---|
| Humidity: | MIL-STD-202F, Method 103B COND. B |
|---|
| Shock: | MIL-STD-202F, Method 213B COND. B |
|---|
| Altitude: | MIL-STD-202F, Method 105C COND. B |
|---|
| Temperature Cycle: | MIL-STD-202F, Method 107D COND. B |
|---|
| Vibration: | MIL-STD-202F, Method 204D COND. B |
|---|
