ILF-1450-LP Preliminary

Coaxial In-line Low Pass Filter

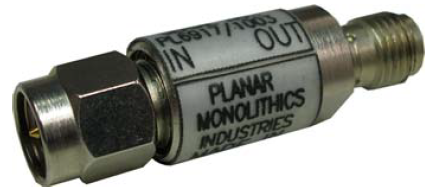

Quantic PMI Model ILF-1450-LP is a Coaxial In-line Low Pass Filter with a passband frequency of 0.5 to 1.45 GHz. This Model is offered in our standard SMA tubular package which measures 1.31" in length and are an excellent choice when signal filtering is required in a small space.

Product Specifications

General Parameters:
Status: Preliminary
Type: Low Pass Filter
Passband (GHz): 0.5 to 1.45
Center Frequency, Fo (GHz): 0.975
Cut-Off Frequency (GHz): 1.45
Passband Insertion Loss (dB): 2.75 dB
Rejection: -25 dB @ 1.7 GHz,
-35 dB @ 1.8 to 2 GHz,
-20 dB @ 2 to 3 GHz
Pass Band VSWR: 2.0:1
Impedance: 50 Ohm
Input Power: 5 W
Applications: GPS, Satellite, Navigation
Operating Temperature: -55 °C to +85 °C
Storage Temperature: -65 °C to +125 °C
Connectors: SMA Male / Female
Export Classification (ECCN): EAR99
