ILF-2400-HP Preliminary
Coaxial In-line High Pass Filter

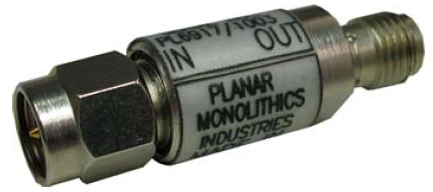

Quantic PMI Model ILF-2400-HP is a Coaxial In-line High Pass Filter with a bandpass frequency of 2.4 to 3 GHz. This Model is offered in our standard SMA tubular package which measures 1.31" in length and are an excellent choice when signal filtering is required in a small space.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Type: | High Pass Filter |
| Passband (GHz): | 2.4 to 3 |
| Center Frequency, Fo (GHz): | 2.7 |
| Cut-Off Frequency (GHz): | 2.4 |
| Passband Insertion Loss (dB): | 1.25 dB |
| Rejection: | -25 dB @ 0.875 to 0.92 GHz, -20 dB @ 1.705 to 1.79 GHz, -18 dB @ 1.845 to 1.915 GHz |
| Pass Band VSWR: | 2.0:1 |
| Impedance: | 50 Ohm |
| Input Power: | 5 W |
| Applications: | Point-to-Point Links, Wireless Systems, SATCOM |
| Operating Temperature: | -55 °C to +85 °C |
| Storage Temperature: | -65 °C to +125 °C |
| Connectors: | SMA Male / Female |
| Export Classification (ECCN): | EAR99 |
