ILF-3800-LP Preliminary

Coaxial In-Line Low Pass Filter

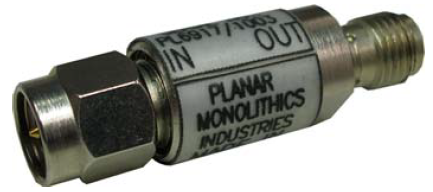

Quantic PMI Model ILF-3800-LP Coaxial In-Line Low Pass Filter with a bandpass frequency of 3 to 3.8 GHz. This Model is offered in our standard SMA tubular package which measures 1.31" in length and are an excellent choice when signal filtering is required in a small space.

Product Specifications

General Parameters:
Status: Preliminary
Type: Low Pass Filter
Passband (GHz): 3 to 3.8
Center Frequency, Fo (GHz): 3.4
Cut-Off Frequency (GHz): 3.8
Passband Insertion Loss (dB): 0.8 dB
Rejection: -15 dB @ 6.1 GHz,
-25 dB @ 6.6 to 8 GHz,
-30 dB @ 8 to 12 GHz
Pass Band VSWR: 2.0:1
Impedance: 50 Ohm
Input Power: 5 W
Applications: Wireless Systems, WiMAX
Operating Temperature: -55 °C to +85 °C
Storage Temperature: -65 °C to +125 °C
Connectors: SMA Male / Female
Export Classification (ECCN): EAR99
