| General Parameters: |
|---|
| Status: | Preliminary |
|---|
| Frequency Range (GHz): | 12 to 18 |
|---|
| Frequency Min (GHz): | 12 |
|---|
| Frequency Max (GHz): | 18 |
|---|
| Insertion Loss (dB): | 0.6 dB Max |
|---|
| Isolation (GHz): | 18 dB Min |
|---|
| VSWR: | 1.35:1 Max |
|---|
| Forward Power: | 20 W Max |
|---|
| Reverse Power: | 5 W Max |
|---|
| Impedance: | 50 Ohms |
|---|
| Connectors: | SMA Female |
|---|

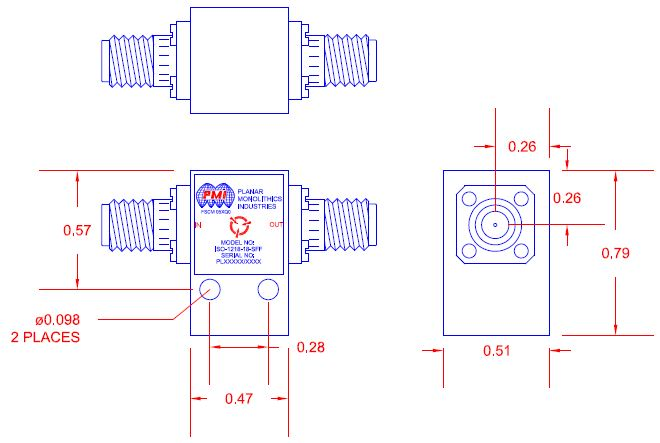

| Size: | 0.79" x 0.51" x 0.47" |
|---|
| Finish: | Painted Blue |
|---|
| Export Classification (ECCN): | EAR99 |
|---|
| Environmental Ratings: |
|---|
| Temperature: | -20 °C to +70 °C (Operating),
-45 °C to +105 °C (Non-Operating) |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Vibration: | MIL-STD-202, Method 204D Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
