JTIDS-0001-SFM-ROHS Active

Band Reject Filter - RoHS & REACH Compliant

JTIDS-0001-SFM-ROHS

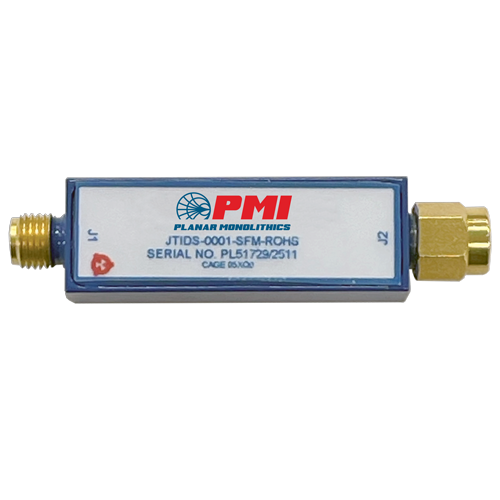

Quantic PMI Model JTIDS-0001-SFM-ROHS is an ultra-small band reject filter centered at 1.085 GHz. This filter rejects frequencies from 0.96 to 1.21 GHz and was specifically designed for Military JTIDS applications. Package size is 1.4" x 0.5" x 0.5" with SMA female/male connectors. RoHS & REACH Compliant.

Same electrical performance as https://www.quanticpmi.com/product-details/jtids-0001-sfm

Product Specifications

General Parameters:
Status: Active
Center Frequency, Fo (GHz): 1.085
Notch Bandwidth (GHz): 0.25
Passband Insertion Loss (dB): 6 dB Max
Passband VSWR: 2.0:1 Typ
3.5:1 Max at Passband Edge
RF Input Power: 50 W CW
Rejection: 40 dBc Min @ 0.96 to 1.21 GHz
Connectors In/Out: SMA Female / Male
Size: 1.5" x 0.5" x 0.5"
Finish: Painted Blue
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -40 ºC to +85 ºC
Non-Operating: -40 ºC to +100 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
