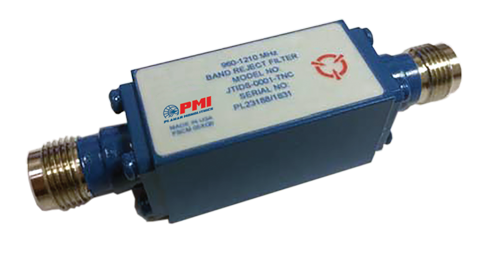

JTIDS-0001-TNC

Model JTIDS-0001-TNS is an ultra small band reject filter centered at 1085 MHz. This filter rejects frequencies from 960 to 1210 MHz and was specifically designed for Military JDITS applications

Product Specifications

General Parameters:
Status: Active
Center Frequency, Fo: 1085 MHz
Notch Bandwidth: 250 MHz
Passband Insertion Loss: 6.0 dB
Passband VSWR: 2.0:1
Rejection: -40 dBc @ 960 to 1210 MHz
Size: 1.5"L x 0.5"W x 0.5"H
Connectors In/Out: TNC
Environmental Ratings:
Temperature: -40ºC to +85 ºC Operating
Non-Operating: -40 ºC to +100 ºC Non-Operating
Humidity: MIL-STD-202F, Method 103B Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
