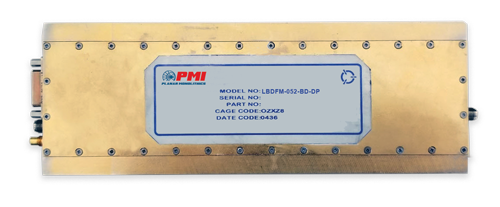

LBDFM-052-BD-DP Active
Low Band Direction Finding Module, Uni-Directional, Multi-Function Device
Additional Documents
PMI Model LBDFM-052-BD-DP is a Low Band Direction Finding Module from 0.5 to 2 GHz, Uni-Directional, Multi-Function Device that routes the signal present at the RF Input Connector through one of its four channels to the RF output connector, to amplitude modulate the input signal. The input and output ports can be switched to internal 50 Ohm terminations to ensure matched source and load impedance for interfacing devices during off-times and Isolation or VSWR tests.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Product Description: | PMI Model LBDFM-052-BD-DP is a Low Band Direction Finding Module from 0.5 to 2 GHz, Uni-Directional, Multi-Function Device that routes the signal present at the RF Input Connector through one of its four channels to the RF output connector, to amplitude modulate the input signal. The input and output ports can be switched to internal 50 Ohm terminations to ensure matched source and load impedance for interfacing devices during off-times and Isolation or VSWR tests. |
| Item No.: | 4 |
| Frequency Range: | 0.5 to 2 GHz |
| RF Input Signal Level Range: | 5 to 8 dBm Typ, 10 dBm Max |
| RF Output Power Level and Gain Compression: | Power Out = 14 dBm Min at all frequencies with Input Power = 5 dBm and Attenuation set at Min, Gain Compression at 0.9 dB maximum under these conditions. |
| VSWR: | 2.0:1, RF Input, RF Output |
| Noise Figure: | 8.5 dB Max @ Min Attenuation |
| RF Output Spectral Purity: | -60 dBc Max for Spurious Signals and Harmonic Signals |
| Macro-Gain Flatness Amplitude Taper: | 8 dB Max Peak-To-Peak @ -10 dBm Input |
| Fine-Grain Gain Flatness: | 3 dB Max Peak-To-Peak for any 40 MHz Bandwidth @ -5 dBm Input |
| Connectors: | SMA Female |
| Size: | 6.9” x 2.48” x 0.85” |
| Export Classification (ECCN): | EAR99 |
