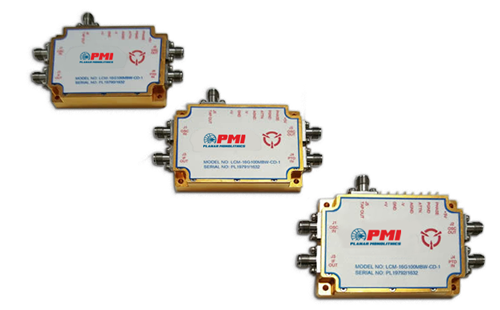

LCM-16G100MBW-CD-1 Active

Amplified RF Laser Control Module

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LCM_7R7G8R2G_CD_1_001_Bottom_74418312_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LCM_7R7G8R2G_CD_1_001_Top_6202616_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LCM_16G100MBW_CD_1_95772029_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LCM_16G100MBW_CD_1_GROUP_43442757_400.png
Product Feature
Additional Documents

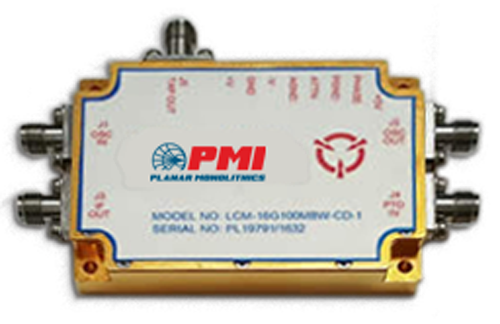

Quantic PMI Model No. LCM-16G100MBW-CD-1 is an Amplified RF Laser Control Module for use at a frequency of 16.0 GHz, ±50 MHz with an IF range of DC to 10 kHz.  It features a 20 dB voltage programmable attenuator and a 360° phase shifter.  This model is designed for low spectral noise and high reverse isolation in a slimline housing.

Product Specifications

General Parameters:
Status: Active
Product Description: PMI Model No. LCM-16G100MBW-CD-1 is an Amplified RF Laser Control Module for use at a frequency of 16.0 GHz, ±50 MHz with an IF range of DC to 10 kHz. It features a 20 dB voltage programmable attenuator and a 360° phase shifter. This model is designed for low spectral noise and high reverse isolation in a slimline housing.
Item No.: 36
