LCM-7R7G8R2G-CD-1 Active

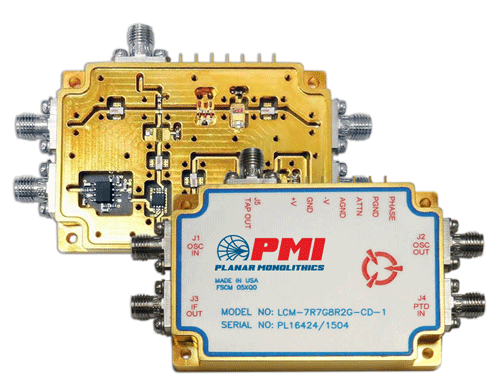

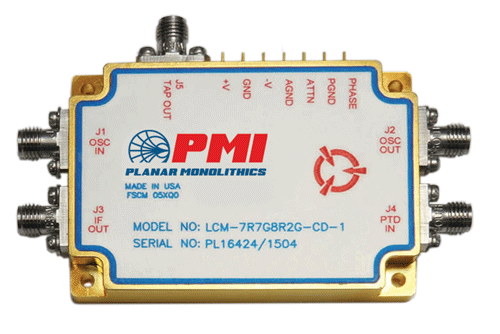

Amplified RF Laser Control Module

  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LCM_7R7G8R2G_CD_1_76653540_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LCM_7R7G8R2G_CD_1_001_Bottom_12720385_400.png
  • https://d2f6h2rm95zg9t.cloudfront.net/81644761/LCM_7R7G8R2G_CD_1_001_Top_4723152_400.png
Product Feature

Quantic PMI Model No. LCM-7R7G8R2G-CD-1 is an Amplified RF Laser Control Module for use at a frequency of 7.7 GHz to 8.2 GHz with an IF range of DC to 10KHz.  It features a 20 dB voltage programmable attenuator and a 360° phase shifter.  This model is designed for low spectral noise and high reverse isolation, offered in a slim line housing measuring only 2.5" x 1.75" x 0.4".

Product Specifications

General Parameters:
Status: Active
Product Description: Quantic PMI Model No. LCM-7R7G8R2G-CD-1 is an Amplified RF Laser Control Module for use at a frequency of 7.7 GHz to 8.2 GHz with an IF range of DC to 10KHz. It features a 20 dB voltage programmable attenuator and a 360° phase shifter. This model is designed for low spectral noise and high reverse isolation, offered in a slim line housing measuring only 2.5" x 1.75" x 0.4".
Item No.: 41
