LM-0118-10-1W-SHS-2-FM-ROHS Active
High-Power Limiter
Buy Now

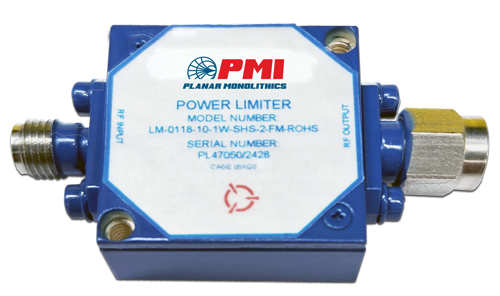

PMI Model LM-0118-10-1W-SHS-2-FM-ROHS is a high-power limiter that operates from 0.1 to 18 GHz that handles 100 W peak power with a pulse width of 1 µs. This limiter has an insertion loss of 2 dB, a VSWR of 2.0:1, and an input power of 5 W CW. Contains SMA female and male connectors, and the housing size is 1.0" x 1.0" x 0.4".
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.1 to 18 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 1.8 dB Max, 1.5 Typ (@ -20 dBm) |
| Input/Output VSWR: | 2.0:1 Max 1.5:1 Typ (@ -20 dBm) |
| Peak Power: | 100 W |
| Average Power: | 5 W CW |
| Input Power: | 5 W CW |
| RF Leakage (dBm): | 15 dBm Max, 10 dBm Typ |
| Pulse width: | 1 µs |
| Duty Cycle: | 0.1% |
| Leakage: | 15 dBm Max 10 dBm Typ (@ 1 W) |
| Connectors In/Out: | SMA Female / Male |
| Size: | 1.00" x 1.00" x 0.40" |
| Finish: | Painted Blue |
| Weight: | 1.5 oz. Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +100 °C |
| Humidity: | MIL-STD-202F, METHOD 103B COND. B |
| Vibration: | MIL-STD-202F, METHOD 204D COND. B |
| Shock: | MIL-STD-202F, METHOD 213B COND. B |
| Altitude: | MIL-STD-202F, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202F, METHOD 107D COND. A |
