LM-0D01M18G-100W-17DBM-SMF-HERM Preliminary
RF Limiter

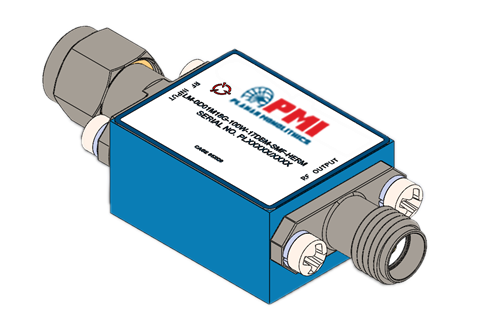

PMI Model LM-0D01M18G-100W-17DBM-SMF-HERM is a 0.00001 to 18 GHz, hermetically sealed RF limiter featuring 17 dBm flat leakage, 500 W peak power handling, and 100 W CW power handling. Housing size is 0.625" x 0.8' x 0.4" with SMA male / female connectors.
This unit is provided without DC blocking on the input to facilitate low frequency operation. DC blocking is provided on the output.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 0.00001 to 18 |
| Frequency Min (GHz): | 0.00001 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 1 dB Max (50 kHz to 10 MHz) 2 Max (10 MHz to 11 GHz) 3.5 Max (11 to 18 GHz) |
| Input/Output VSWR: | 2.2:1 Max (50 kHz to 10 MHz) 2.0:1 Max (10 MHz to 11 GHz) 2.1:1 Max (11 GHz to 18 GHz) |
| Peak Power: | 57 dBm Max (0.00001 to 11 GHz) 4% DC, 125 us PW |
| Input Power: | 50 dBm CW Max (0.00001 to 11 GHz) 20 dBm CW Max (11 to 18 GHz) |
| Spike Leakage: | 1000 ergs |
| Flat Leakage: | 17 dBm Max |
| Recovery Time: | 100 ns Max |
| DC Blocking: | Present on output, not on input. |
| Sealing: | Hermetic |
| Connectors In/Out: | SMA Male / Female |
| Size: | 0.625" x 0.8' x 0.4" |
| Finish: | Painted Blue |
| Weight: | 2 oz Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 to +85 °C |
| Non-Operating Temperature: | -62 °C to +95 °C |
| Temperature Cycle: | MIL-STD-883, Method 1010, Cond. A |
