LM-0D518-100W-22DBM Preliminary
RF Limiter

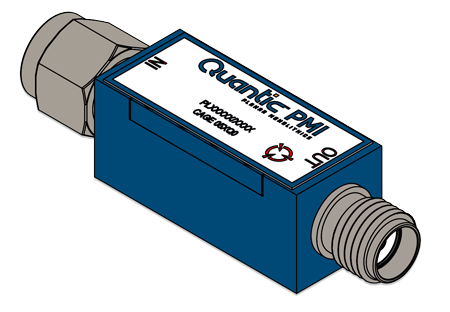

PMI model LM-0D518-100W-22DBM is a 0.5 to 18 GHz RF limiter with 100 W CW power handling, 22 dBm leakage, and 3 dB insertion loss. Package size is 0.9" x 0.38" x 0.38" with SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 0.5 to 18 |
| Frequency Min (GHz): | 0.5 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max @ -10 dBm Input Power |
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm input power |
| Input Power: | 100 W CW Max 1 kW Peak Max +85 °C (1 µs PW, 0.1% Duty Cycle) |
| RF Leakage (dBm): | 22 dBm Max @ 100 W CW |
| Recovery Time: | 100 ns Max @ 100 W Peak Power |
| P1dB Limiting Threshold (dBm): | 12 dBm Min |
| Connectors In/Out: | Input: SMA Male Output: SMA Female |
| Size: | 0.90" x 0.38" x 0.38" Excluding Connectors |
| Finish: | Painted Blue |
| Weight: | 20 g [0.705 oz] Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -62 °C to +95 °C |
