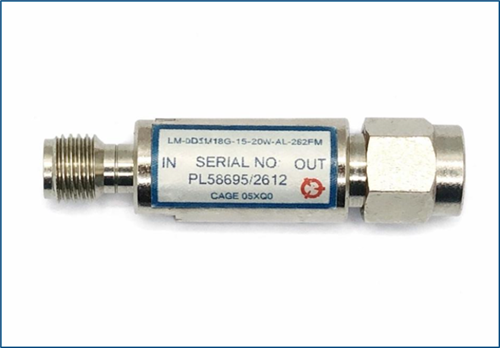

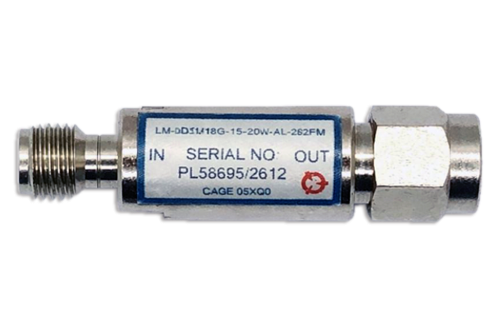

LM-0D5M18G-16-20W-AL-292FM Active
Coaxial Limiter
PMI Model LM-0D5M18G-16-20W-AL-292FM is a coaxial limiter with an operating range of 0.5 MHz to 18. GHz that has a maximum insertion loss of 2 dB at -10 dBm input power with a VSWR of 2.0:1 maximum. Package size is Ø0.38" x 1.31" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.0005 to 18 |
| Frequency Min (GHz): | 0.0005 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2 dB Max @ -10 dBm Input Power |
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm Input Power |
| Power Handling: | 20 W CW Max 1 kW Peak Max @ 1 µs Pulse Width, 1% Duty Cycle 100 W Peak Max @ 10 µs Pulse Width, 10% Duty Cycle |
| RF Leakage (dBm): | 17 dBm Max |
| Recovery Time: | 500 ns Max @ 1 kW Peak Power |
| P1dB Limiting Threshold (dBm): | 5 dBm Min |
| Impedance: | 50 Ohm |
| Connectors In/Out: | 2.92mm Female / Male |
| Size: | Ø0.38" x 1.31" |
| Finish: | Albaloy Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -62 °C to +95 °C |
| Humidity: | 100% |
| Vibration: | 0.1 Inchpp or ± 10G, 5~500 Hz (Figure 2, Sheet 1 of 3, Curve IV) |
| Shock: | 20G, 11 ± 1 ms |
| Altitude: | 70, 000 ft |
