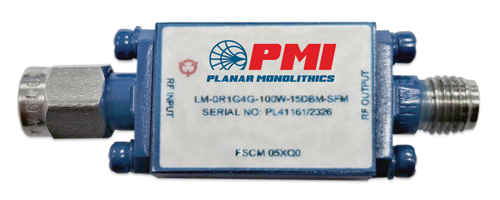

LM-0R1G4G-100W-15DBM-SMF Active
High Power Limiter
Additional Documents
- Product Feature
- Test Report - 6/5/23
- S - Parameters
- PL41160 - Unit Data
- PL41531 - Unit Data
- PL41532 - Unit Data
- 3D STEP Model
- PL52893 - Unit Data
- PL52894 - Unit Data
- PL52895 - Unit Data
- PL52896 - Unit Data
- PL52897 - Unit Data
- PL52898 - Unit Data
- PL52899 - Unit Data
- PL52900 - Unit Data
- PL52901 - Unit Data
- PL52902 - Unit Data
- PL52903 - Unit Data
- PL58721 - Unit Data
- PL58722 - Unit Data
- PL58723 - Unit Data
- PL58724 - Unit Data
- PL58725 - Unit Data
- PL58726 - Unit Data
- PL58727 - Unit Data
- PL58728 - Unit Data
- PL58729 - Unit Data
- PL58730 - Unit Data
PMI Model LM-0R1G4G-100W-15DBM-SMF is a high power limiter that operates over the 0.1 to 4 GHz frequency range and can handle an input power of 100 W CW. Package size is 0.625" x 0.8" x 0.4" with SMA male / female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.1 to 4 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 1.5 dB Max |
| Input/Output VSWR: | 2.0:1 Max |
| Input Power: | 50 dBm CW (100 W) Max 60 dBm Peak (1 kW) 1% DC, 1 µs PW |
| RF Leakage (dBm): | 15 Max (Flat) |
| Recovery Time: | 100 ns Max |
| Connectors In/Out: | SMA Male/Female |
| Size: | 15.88 mm x 20.32 mm x 10.16 mm (Excluding Connectors) 0.625" x 0.80" x 0.40" (Excluding Connectors) |
| Finish: | Hermetically sealed, painted blue. Mounting surface free of paint |
| Weight: | 2.0 oz Max |
| Insertion Loss @ -10 dBm Input Power: | 2.0:1 Max (Input/Output) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 °C to +55 °CC |
| Non-Operating Temperature: | -57 °C to +85 °CC |
| Humidity: | 100% RH (WITH CONDENSATION) |
| Altitude: | 43, 000 FT |
