LM-0R1G4G-100W-15DBM-SMF-ROHS Active
High-Power Limiter - RoHS & REACH Compliant

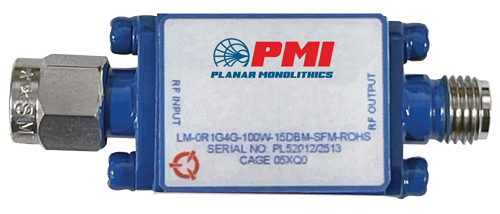

PMI Model LM-0R1G4G-100W-15DBM-SMF-ROHS is a high-power limiter that operates over the 0.1 to 4 GHz frequency range and can handle an input power of 100 W CW. Package size is 0.625" x 0.80" x 0.40" with SMA male / female connectors. RoHS & REACH Compliant
Same electrical performance as https://www.quanticpmi.com/product-details/lm-0r1g4g-100w-15dbm-smf
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.1 to 4 |
| Frequency Min (GHz): | 0.1 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 1.5 dB Max |
| Input/Output VSWR: | 2.0:1 Max |
| Input Power: | 50 dBm CW (100 W) Max 60 dBm Peak (1 kW) 1% DC, 1 µs PW |
| RF Leakage (dBm): | 15 dBm Max (Flat) |
| Recovery Time: | 100 ns Max |
| Connectors In/Out: | SMA Male/Female |
| Size: | 15.88mm x 20.32mm x 10.16mm (Excluding Connectors) 0.625" x 0.80" x 0.40" (Excluding Connectors) |
| Finish: | Hermetically sealed, painted blue. Mounting surface free of paint |
| Weight: | 2.0 oz Max |
| Insertion Loss @ -10 dBm Input Power: | 2.0:1 Max (Input/Output) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55°C to +85°CC |
| Non-Operating Temperature: | -57 °C to +85 °CC |
| Humidity: | 100% RH (WITH CONDENSATION) |
| Altitude: | 43, 000 FT |
