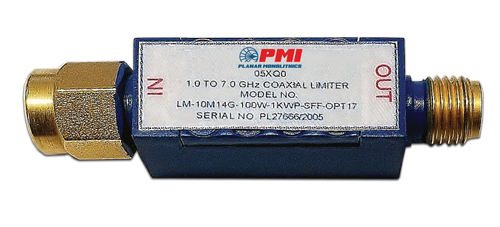

LM-10M14G-100W-1KWP-SFF-OPT17 Active
RF Limiter
Additional Documents
- Product Feature
- Test Report - 1/29/20
- PL38545 - Unit Data
- PL38546 - Unit Data
- PL38547 - Unit Data
- PL38548 - Unit Data
- PL39205 - Unit Data
- PL39206 - Unit Data
- PL39207 - Unit Data
- PL39208 - Unit Data
- PL39209 - Unit Data
- PL39210 - Unit Data
- PL39211 - Unit Data
- PL39212 - Unit Data
- PL39213 - Unit Data
- PL39214 - Unit Data
- PL39215 - Unit Data
- PL39216 - Unit Data
- PL39217 - Unit Data
- PL39218 - Unit Data
- PL39244 - Unit Data
- PL39245 - Unit Data
- PL39246 - Unit Data
- PL39247 - Unit Data
- PL39248 - Unit Data
- PL39249 - Unit Data
- PL39420 - Unit Data
- PL39859 - Unit Data
- PL40513 - Unit Data
- PL42303 - Unit Data
- PL42304 - Unit Data
- PL42305 - Unit Data
- PL42306 - Unit Data
- PL42307 - Unit Data
- PL42308 - Unit Data
- PL42309 - Unit Data
- PL42310 - Unit Data
- PL42311 - Unit Data
- PL42312 - Unit Data
- PL42463 - Unit Data
- PL42464 - Unit Data
- PL42465 - Unit Data
- PL42466 - Unit Data
- PL42467 - Unit Data
- PL42468 - Unit Data
- PL42469 - Unit Data
- PL42470 - Unit Data
- PL42471 - Unit Data
- PL42472 - Unit Data
- PL42473 - Unit Data
- PL42474 - Unit Data
- PL42475 - Unit Data
- PL42608 - Unit Data
- PL42609 - Unit Data
- PL42610 - Unit Data
- PL42611 - Unit Data
- PL42612 - Unit Data
- PL42613 - Unit Data
- PL42614 - Unit Data
- PL42615 - Unit Data
- PL42616 - Unit Data
- PL43015 - Unit Data
- PL43016 - Unit Data
- PL43017 - Unit Data
- PL43156 - Unit Data
- PL43157 - Unit Data
- PL43158 - Unit Data
- PL43159 - Unit Data
- PL44294 - Unit Data
- PL44295 - Unit Data
- PL44296 - Unit Data
- PL44297 - Unit Data
- PL45956 - Unit Data
- PL45957 - Unit Data
Quantic PMI Model LM-10M14G-100W-1KWP-SFF-OPT17 is an RF Limiter that works in the frequency range of 10 MHz to 7.0 GHz. This limiter can handle 100 W CW over 1.0 to 7.0 GHz, for all temperatures (-55 ºC to +85 ºC) and 1 KW peak (10% work cycle, 10 μs maximum pulse width) energy input and provides maximum leakage of +17 dBm typical. This model has a low insertion loss of 2.0 dB and a recovery time of 100 ns typical.
*Note that this device requires external DC blocks, do not apply DC voltages at I/O*
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.01 to 7 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 7 |
| Insertion Loss (dB): | 1.5 dB Max |
| Input/Output VSWR: | 2.0:1 Max (@ -10 dBm Input) |
| Input Power: | 100 W CW Max, 1 KW Peak (1% Duty Cycle, 1 µs Pulse Width |
| RF Leakage (dBm): | 17 Typ @ 100 W CW |
| Recovery Time: | 100 ns Max |
| P1dB Limiting Threshold (dBm): | 5 Min |
| Impedance: | 50 Ohm |
| Size: | 0.90” x 0.38” x 0.38” |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125ºC |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
