LM-10M14G-100W-1KWP-SFF-OPT17-ROHS Active
RF Limiter
Additional Documents
- Product Feature
- Test Report - 5/4/23
- 3D Model
- S - Parameters
- PL40512 - Unit Data
- PL40513 - Unit Data
- PL42831 - Unit Data
- PL42832 - Unit Data
- PL42833 - Unit Data
- PL42834 - Unit Data
- PL42835 - Unit Data
- PL42836 - Unit Data
- PL42837 - Unit Data
- PL42838 - Unit Data
- PL49488 - Unit Data
- PL51628 - Unit Data
- PL51629 - Unit Data
- PL51630 - Unit Data
- PL54702 - Unit Data
- PL54703 - Unit Data
- PL54704 - Unit Data
- PL54705 - Unit Data
- PL54706 - Unit Data
- PL54707 - Unit Data
- PL54823 - Unit Data
- PL54824 - Unit Data
- PL54825 - Unit Data
- PL54826 - Unit Data
- PL54827 - Unit Data
- PL54828 - Unit Data
- PL54942 - Unit Data
- PL54943 - Unit Data
- PL54944 - Unit Data
- PL54950 - Unit Data
- PL59453 - Unit Data

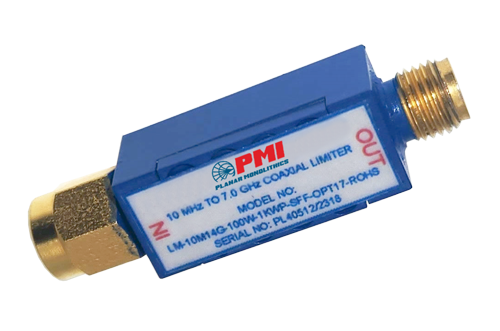

PMI Model LM-10M14G-100W-1KWP-SFF-OPT17-ROHS is an RF Limiter that works in the frequency range of 0.01 to 7 GHz and can handle 100 W CW over 1 to 7 GHz, for all temperatures (-55 to +85 ºC) and 1 KW peak (10% work cycle, 10 μs maximum pulse width) energy input and provides maximum leakage of 17 dBm typical. This model has a low insertion loss of 2 dB and a recovery time of 100 ns typically. Model Size is 0.9” x 0.38” x 0.38", SMA male/female connectors, ROHS Compliant.
Note: This device requires external DC blocks, and does not apply DC voltages at I/O.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.01 to 7 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 7 |
| Insertion Loss (dB): | 1.5 dB Max |
| Input/Output VSWR: | 2.0:1 Max (@ -10 dBm Input) |
| Input Power: | 100 W CW Max, 1 KW Peak (1% Duty Cycle, 1 µs Pulse Width |
| RF Leakage (dBm): | 17 dBm Typ @ 100 W CW |
| Recovery Time: | 100 ns Max |
| P1dB Limiting Threshold (dBm): | 5 dBm Min |
| Impedance: | 50 Ohm |
| Connectors In/Out: | SMA Male / Female |
| Size: | 0.90” x 0.38” x 0.38" |
| Finish: | Painted Blue |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +85 ºC |
| Non-Operating Temperature: | -55 ºC to +125 ºC |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
