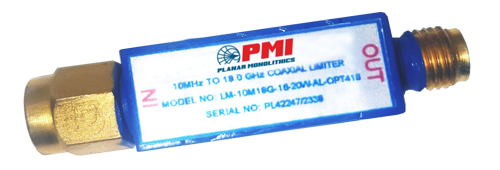

LM-10M18G-16-20W-AL-OPT418 Active
Coaxial Limiter
PMI Model LM-10M18G-16-20W-AL-OPT418 is a coaxial limiter with an operating range of 4 to 18 GHz. This model has a maximum insertion loss of 2.5 dB at -10 dBm input power with a VSWR of 2.0:1, RF power handling of 20 W, 7 dBm limiting threshold and leakage power of 15 dBm. This compact unit measures 0.90" x 0.38" sq and is fitted with SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 4 to 18 |
| Frequency Min (GHz): | 4 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2 dB @ -10 dBm Input Power |
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm Input Power |
| Input Power: | 20 W CW Max 500 W Peak Max - 1 µs PW / 1 kHz PRF |
| Leakage Power: | 15 dBm Typ |
| RF Leakage (dBm): | 15 dBm Typ |
| Recovery Time: | 250 ns Max |
| Limiting Threshold (dBm): | 5 dBm Nom (1 dB Compression) |
| P1dB Limiting Threshold (dBm): | 5 dBm Nom (1 dB Compression) |
| Impedance: | 50 Ohm |
| RF Power Handling: | 20 W CW Max 500 W Peak Max - 1 µs PW / 1 kHz PRF |
| Connectors In/Out: | SMA Male/ Female |
| Size: | 22.86 mm x 9.65 mm x 9.65 mm 0.90" x 0.38" sq excluding connectors |
| Finish: | Painted Blue |
| Weight: | 20 g Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -62 °C to +95 °C |
| Humidity: | 100% |
| Vibration: | 0.1 inchpp or ± 10G, 5 ~ 500 Hz (Figure 2, Sheet 1 of 3, Curve IV) |
| Shock: | 20G, 11±1 ms |
| Altitude: | 70, 000 FT |
