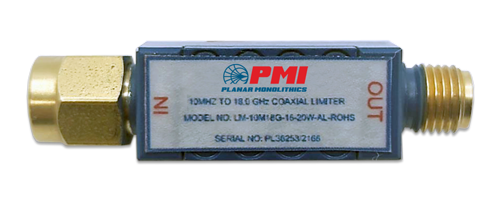

LM-10M18G-16-20W-AL-ROHS

Coaxial Limiter

PMI Model No. LM-10M18G-16-20W-AL-ROHS is a coaxial limiter with an operating range of 10 MHz to 18.0 GHz. This model has a maximum insertion loss of 2.0 dB at -10 dBm input power with a VSWR of 2.0:1 maximum. This compact unit measures 0.90" x 0.38" SQ and is outfitted with SMA connectors.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.01 to 18.0 GHz
Frequency Min: 10 MHz
Frequency Max: 18.0 GHz
Insertion Loss: 2.0 dB Max @ -10 dBm Input Power
Input/Output VSWR: 2.0:1 Max @ -10 dBm Input Power
Power Handling: 20 W Max @ -55 °C to +85 °C
1 kW Peak Max @ 1 µs Pulse Width, 1% Duty Cycle
100 W Peak @ 10 µs Pulse Width, 10% Duty Cycle)
Input Power: -10 dBm
Leakage Power: +17 dBm Max
Recovery Time (3 dB): 250 ns Max @ 1000 W Peak Power
Limiting Threshold: +5 dBm Min (1 dB Compression)
Impedance: 50 Ohms
Connectors In/Out: SMA (M)/SMA (F)
Size: 0.90" x 0.38" x 0.38" Max (Excluding Connectors)
Finish: Painted Blue
Weight: 20 g Max
Environmental Ratings:
Operating Temperature: -55 °C to +85 °C
Non-Operating Temperature: -62 °C to +95 °C
Humidity: 100%
Vibration: 0.1 Inchpp or ± 10G, 5~500 Hz
(Figure 2, Sheet 1 of 3, Curve IV)
Shock: 15G, 11 ± 1 ms
Altitude: 70,000 ft
