LM-10M50G-18DBM-4W-24FF Active
High Power Limiter
Buy Now

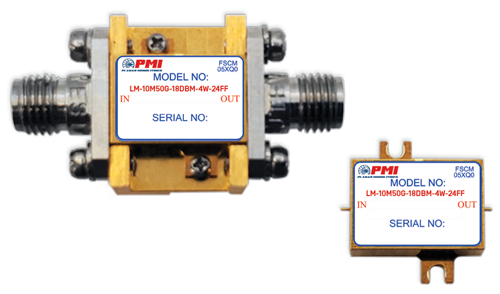

PMI Model LM-10M50G-18DBM-4W-24FF is a high-power limiter that operates over the 10 MHz to 50.0 GHz frequency range. This model is capable of handling an input power of 4 Watts CW & 20 Watts peak, pulse width 1 µs to 10 µs, 1% duty cycle. Housing size is 0.53” x 0.7” x 0.26" and uses 2.4mm female connectors that are removable for surface mount use. 2-IN-1 - Dual Use Connectorized or Surface Mount
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.01 to 50 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 50 |
| Insertion Loss (dB): | 1.5 dB Max (0.01 to 18 GHz), 2.2 dB Max (18 to 40 GHz), 3.4 dB Max (40 to 50 GHz) |
| Input/Output VSWR: | 2.0:1 Max |
| Power Handling: | 4 W CW Max |
| Input Power: | 20 W Max with Pw 1 µs, 1% Duty Cycle (Tested to 18 GHz), 20 W Max with Pw 10 µs, 1% Duty Cycle (Tested to 8 GHz), 16 W Max at 18 GHz with Pw 10 µs, 1% Duty Cycle |
| RF Leakage (dBm): | 18 dBm Typ |
| Recovery Time: | 100 ns Typ |
| P1dB Limiting Threshold (dBm): | 15 dBm Typ |
| Peak Input Power: | 20 W Max |
| VSWR @ -10 dBm Input Power: | 2.0:1 Max |
| Connectors In/Out: | 2.4mm Female - Removable |
| Size: | 0.53” x 0.7” x 0.26” |
| Finish: | Gold Plated |
| Insertion Loss @ -10 dBm Input Power: | 1.5 dB Max (0.01 to 18 GHz), 2.2 dB Max (18 to 40 GHz), 3.4 dB Max (40 to 50 GHz) |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond B |
| Vibration: | MIL-STD-202, Method 204D Cond B |
| Shock: | MIL-STD-202, Method 213B Cond B |
| Altitude: | MIL-STD-202, Method 105C Cond B |
| Temperature Cycle: | MIL-STD-202, Method 107A Cond A |
