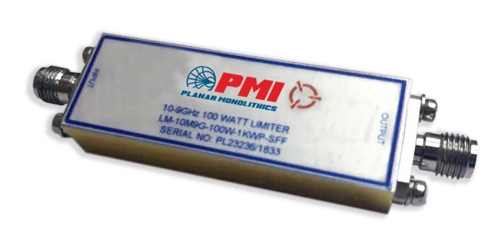

LM-10M9G-100CW-1KWP-SFF Active
RF Limiter
Buy Now
Additional Documents
- Product Feature
- Test Report - 8/27/2018
- 3D Step Model
- PL25918 - Unit Data
- PL25919 - Unit Data
- PL25920 - Unit Data
- PL26323 - Unit Data
- PL27092 - Unit Data
- PL27093 - Unit Data
- PL27889 - Unit Data
- PL27891 - Unit Data
- PL27892 - Unit Data
- PL27893 - Unit Data
- PL28116 - Unit Data
- PL28117 - Unit Data
- PL28118 - Unit Data
- PL29892 - Unit Data
- PL29893 - Unit Data
- PL30165 - Unit Data
- PL30166 - Unit Data
- PL30166-1 - Unit Data
- PL30167 - Unit Data
- PL30355 - Unit Data
- PL30356 - Unit Data
- PL30357 - Unit Data
- PL30358 - Unit Data
- PL30359 - Unit Data
- PL30416 - Unit Data
- PL30735 - Unit Data
- PL30736 - Unit Data
- PL31085 - Unit Data
- PL31439 - Unit Data
- PL31639 - Unit Data
- PL31640 - Unit Data
- PL31641 - Unit Data
- PL31642 - Unit Data
- PL31643 - Unit Data
- PL31644 - Unit Data
- PL32451 - Unit Data
- PL32452 - Unit Data
- PL32453 - Unit Data
- PL32454 - Unit Data
- PL32455 - Unit Data
- PL32456 - Unit Data
- PL32457 - Unit Data
- PL32458 - Unit Data
- PL32459 - Unit Data
- PL32460 - Unit Data
- PL32462 - Unit Data
- PL32463 - Unit Data
- PL33732 - Unit Data
- PL33733 - Unit Data
- PL33734 - Unit Data
- PL33735 - Unit Data
- PL34281 - Unit Data
- PL34282 - Unit Data
- PL35424 - Unit Data
- PL35425 - Unit Data
- PL35426 - Unit Data
- PL36058 - Unit Data
- PL36059 - Unit Data
- PL36252 - Unit Data
- PL36864 - Unit Data
- PL36865 - Unit Data
- PL36866 - Unit Data
- PL38428 - Unit Data
- PL38429 - Unit Data
- PL38430 - Unit Data
- PL38431 - Unit Data
- PL38432 - Unit Data
- PL40514 - Unit Data
- PL40515 - Unit Data
- PL40516 - Unit Data
Quantic PMI Model LM-10M9G-100CW-1KWP-SFF is a RF Limiter that operates in the 10 MHz to 9 GHz frequency range. This limiter can handle 100 W CW over 10 MHz to 8.0 GHz, 80 W CW 9.0 GHz, and 50 W CW 10 MHz to 9.0 GHz for all temperatures (-55 °C to +85 °C) and 1 kW Peak (1% duty cycle, 1 µs maximum pulse width) input power and provides a maximum leakage of +20 dBm maximum. This model has a low insertion loss of 2 dB and a recovery time of 100 ns typically. Unit size is Size and 1.86" x 0.65" x 0.38" has removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.01 to 9 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 9 |
| Insertion Loss (dB): | 2 dB Typ |
| Input/Output VSWR: | 2.0:1 Max (At -10 dBm input) |
| Input Power: | 100 W CW Max, 10 MHz to 8.0 GHz 80 W CW Max at 9.0 GHz 50 W CW Max 10 MHz to 9.0 GHz All Temperatures: 1 kW Peak (1 µs PW Max, 1% Duty Cycle) |
| RF Leakage (dBm): | 20 Max @ 100 W CW |
| Recovery Time: | 100 ns Typ |
| P1dB Limiting Threshold (dBm): | 0 Min |
| Impedance: | 50 Ohms |
| Connectors In/Out: | SMA female - field replaceable |
| Size: | 1.86" x 0.65" x 0.38" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Constant Acceleration: | MIL-STD-883, Method 2001, A (Y1 Axis) |
| External Visual: | MIL-STD-883, Method 2009 |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -60 °C to +100 °C |
| Stabilization Bake: | MIL-STD-883, Method 1008, Test Cond. B |
| Thermal Cycle: | MIL-STD-883, Method 1010, Test Cond. B |
