LM-118-100W-22DBM Active
RF Limiter
Buy Now
Additional Documents
- Product Feature
- Test Report - 9/11/24
- S-Parameters
- 3D Model
- PL45367 - Unit Data
- PL48063 - Unit Data
- PL48064 - Unit Data
- PL48065 - Unit Data
- PL51585 - Unit Data
- PL51586 - Unit Data
- PL51587 - Unit Data
- PL51758 - Unit Data
- PL51767 - Unit Data
- PL51768 - Unit Data
- PL51769 - Unit Data
- PL51770 - Unit Data
- PL51771 - Unit Data
- PL51772 - Unit Data
- PL51773 - Unit Data
- PL51807 - Unit Data
- PL51808 - Unit Data
- PL51809 - Unit Data
- PL52360 - Unit Data
- PL52361 - Unit Data
- PL52362 - Unit Data
- PL52363 - Unit Data
- PL52364 - Unit Data
- PL52365 - Unit Data
- PL52366 - Unit Data
- PL52367 - Unit Data
- PL52817 - Unit Data
- PL52818 - Unit Data
- PL52819 - Unit Data
- PL52820 - Unit Data
- PL52821 - Unit Data

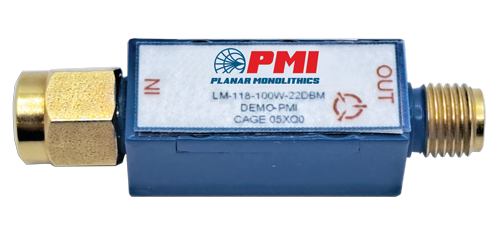

PMI Model LM-118-100W-22DBM is an RF Limiter that operates in the range of frequencies from 1 to 18 GHz that can handle up to 100 W CW over temperature (-55 to +85 °C). The leakage power is 22 dBm maximum; a low insertion loss of 2.6 dB and a maximum 100 ns recovery time. Package size is 0.9" x 0.38" x 0.38" with SMA connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 18 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 3 dB Max @ -10 dBm Input Power |
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm input power |
| Power Handling: | 100 W CW Max @ -55 to +85 °C 1 kW Peak Max +85 °C (1 µs PW, 0.1% Duty Cycle) 100 W (1 µs, 1% Duty Cycle, 10 kHz) 100 W (10 µs, 0.1% Duty Cycle, 100 Hz) 100 W (1 µs, 0.1% Duty Cycle, 1 kHz) 100 W (40 µs, 10% Duty Cycle 2.5 kHz) |
| Input Power: | 100 W CW Max @ -55 to +85 °C |
| Leakage Power: | 22 dBm Max @ 100 W CW |
| RF Leakage (dBm): | 22 dB Max @ 100 W CW |
| Recovery Time: | 100 ns Max @ 100 W Peak Power |
| Limiting Threshold (dBm): | 12 dBm Min |
| P1dB Limiting Threshold (dBm): | 12 dBm Min |
| Connectors In/Out: | Input: SMA Male Output: SMA Female |
| Size: | 0.90" x 0.38" x 0.38" Excluding Connectors |
| Finish: | Painted Blue |
| Weight: | 20 g [0.705 oz] Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -62 °C to +95 °C |
