LM-150M5G-200CW-2KWPK-AGAL Active
Ultra-High Power Limiter

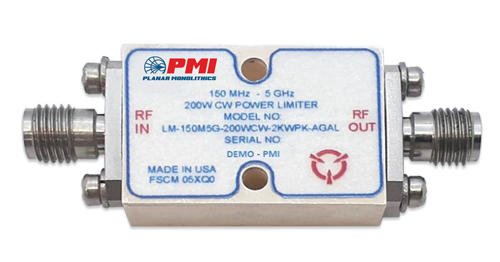

PMI Model LM-150M5G-200CW-2KWPK-AGAL is a ultra-high power limiter operating in the frequency range 150 MHz to 5 GHz, with 200 W of CW power handling (53 dBm), and peak power 2 KW (63 dBm), 25 µs PW, 5% duty cycle. This compact housing measures 1.0" x 0.68" x 0.35" with SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.15 to 5 |
| Frequency Min (GHz): | 0.15 |
| Frequency Max (GHz): | 5 |
| Insertion Loss (dB): | 2 dB Max (0.15 to 0.3 GHz), 1.5 dB Max (0.3 to 5 GHz) |
| Input/Output VSWR: | 1.9:1 Max |
| Input Power: | 200 W CW (53 dBm) Typ, 2 kW Peak Power (63 dBm) @ 25 µs PW, 5% Duty Cycle) |
| RF Leakage (dBm): | 20 dBm Typ |
| Recovery Time: | 100 ns Max |
| P1dB Limiting Threshold (dBm): | 6 dBm Min |
| Connectors In/Out: | SMA Female |
| Size: | 1.00" x 0.68" x 0.35" |
| Finish: | Blue Paint |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
