LM-1G18G-15-3W-500WP-SFF

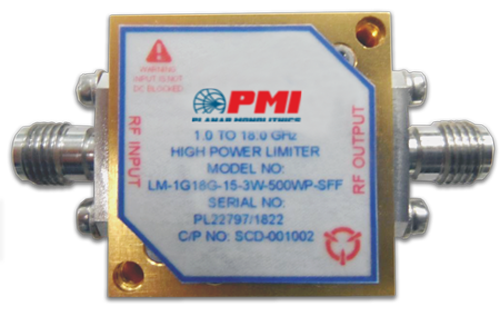

PMI Model No. LM-1G18G-15-3W-500WP-SFF is a high power limiter that operates over the 1.0 to 18.0 GHz frequency range. This model is capable of handling an input power of 3 Watts CW and 500 Watts peak. It is housed within a compact 1.00" x 1.00" x 0.40" package outfitted with field replaceable SMA female connectors.

Product Specifications

General Parameters:
Status: Active
Frequency: 1.0 to 18.0 GHz
Frequency Min: 1.0 GHz
Frequency Max: 18.0 GHz
Insertion Loss: 2.5 dB
Insertion Loss (Measured): 2.5 dB Max - Measured 2.08 dB
Input/Output VSWR: 2.0:1 Max
VSWR (Measured): 2.0:1 Max - Measured 1.78:1
Peak Power: 500 W
Input Power: 3 W CW
RF Leakage: +17 dBm Typ - Measured +18 dBm
Recovery Time: 100 ns Typ - Measured 33 ns
Connectors In/Out: SMA (F)
Size: 25.4mm x 25.4mm x 10.16mm
0.50 x 0.50 x 0.22
Finish: Gold Plated
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202, Method 103B Cond. B
Vibration: MIL-STD-202, Method 204D Cond. B
Shock: MIL-STD-202, Method 213B Cond. B
Altitude: MIL-STD-202, Method 105C Cond. B
Temperature Cycle: MIL-STD-202, Method 107A Cond. A
