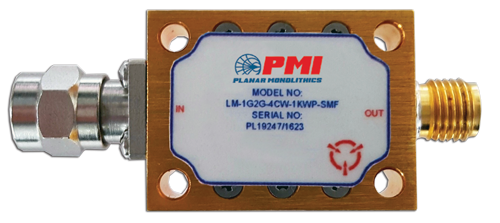

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 1.0 to 2.0 GHz |
|---|
| Frequency Min: | 1 GHz |
|---|
| Frequency Max: | 2 GHz |
|---|
| Insertion Loss: | 0.7 dB Max |
|---|
| Insertion Loss (Measured): | 0.7 dB Max - Measured 0.65 dB |
|---|
| Input/Output VSWR: | 2.0:1 Max |
|---|
| VSWR (Measured): | 2.0:1 Max - Measured 1.54:1 (@ -10 dBm Input) |
|---|
| Input Power: | 4 W CW Max,
1 kW Peak (1% Duty Cycle,
1 µs Max Pulse Width) |
|---|
| Maximum Flat Leakage: | 16 dBm Max (40 mW) - Measured 15.35 dBm |
|---|
| P1dB: | 5 dBm Min - Measured 12 dBm |
|---|
| Recovery Time: | 1 µs Max - Measured 100 ns |
|---|
| Impedance: | 50 Ohms |
|---|
| Size: | 1.00" x0.75" x 0.38" |
|---|
| Finish: | Gold Plated |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +95 ºC |
|---|
| Stabilization Bake: | MIL-STD-883, Method 1008 Cond. B |
|---|
| Thermal Cycle: | MIL-STD-883, Method 1010 Cond. B |
|---|
| Vibration: | Diplacement (Double Amplitude):5 mm p-p 2~7 Hz, Acceleration Level (Peak):±0.5 G 7~50 Hz |
|---|
| Shock: | 15 G, 11 ± 1 ms |
|---|
| Relative Humidity: | 1 |
|---|
| Altitude: | 70,000 ft |
|---|
