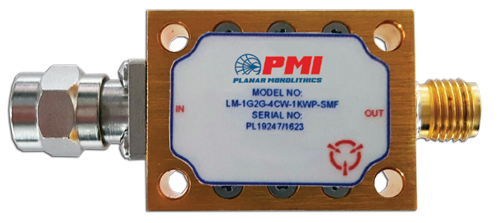

LM-1G2G-4CW-1KWP-SMF-OPT10M6G Active
RF Limiter
Additional Documents
PMI Model LM-1G2G-4CW-1KWP-SMF-OPT10M6G is a RF Limiter that operates in the 0.01 to 6 GHz frequency range which can handle 4 W CW and 1 kW peak (1% duty cycle, 1 µs maximum pulse width) input power and provides a maximum leakage of 16 dBm CW input with a low insertion loss of 2 dB and a recovery time of 1 µs. Package size is 1.0" x 0.75" x 0.38" with SMA male / female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.01 to 6 |
| Frequency Min (GHz): | 0.01 |
| Frequency Max (GHz): | 6 |
| Insertion Loss (dB): | 2 dB Max |
| Input/Output VSWR: | 2.0:1 Max |
| Peak Power: | 1 kW Peak (1% Duty Cycle, 1 µs Max Pulse Width) |
| Input Power: | 4 W CW |
| RF Leakage (dBm): | 16 dBm Max |
| Recovery Time: | 1 µs Max |
| P1dB Limiting Threshold (dBm): | 5 dBm Min |
| Impedance: | 50 Ohm |
| Connectors In/Out: | SMA Male / Female |
| Size: | 1.0" x 0.75" x 0.38" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +95 ºC |
| Stabilization Bake: | MIL-STD-883, Method 1008 Cond. B |
| Thermal Cycle: | MIL-STD-883, Method 1010 Cond. B |
| Vibration: | Displacement (Double Amplitude): 5 mm p-p 2~7 Hz Acceleration Level (Peak): ±0.5 G 7~50 Hz Displacement (Double Amplitude): 10 mm p-p @ 2-10 Hz & 5mm p-p @ 5~10 Hz |
| Shock: | 15 G, 11 ± 1 ms |
| Relative Humidity: | 100% |
| Altitude: | 70, 000 ft |
