LM-1G2G-4CW-1KWP-SMF-OPT2G4G Active
RF Limiter
Additional Documents

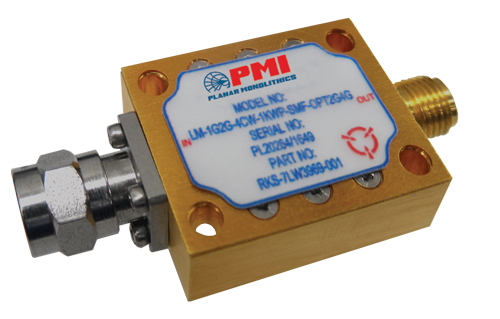

PMI Model LM-1G2G-4CW-1KWP-SMF-OPT2G4G is an RF Limiter that operates over the 2 to 4 GHz frequency range which can handle 40 W CW input power and provides a maximum leakage of 30 dBm (1 W) with low insertion loss of 1.2 dB. Package size is 1.0" x 0.75" x 0.38" with SMA male / female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 2 to 4 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 4 |
| Insertion Loss (dB): | 1.2 dB Max |
| Input/Output VSWR: | 2.0:1 Max |
| Input Power: | 40 W CW (46 dBm) |
| RF Leakage (dBm): | 30 dBm |
| P1dB Limiting Threshold (dBm): | 45 dBm (30% Duty Cycle) |
| Impedance: | 50 Ohm |
| Connectors In/Out: | SMA (M/F) |
| Size: | 1.00" x 0.75" x 0.38" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +95 ºC |
| Stabilization Bake: | MIL-STD-883, Method 1008 Cond. B |
| Thermal Cycle: | MIL-STD-883, Method 1010 Cond. B |
| Vibration: | 0.1 inch pp or ±10G, 5 - 500 Hz (MIL-E-5400R) |
| Shock: | 15 G, 11 ±1 ms |
| Relative Humidity: | 1 |
| Altitude: | 70, 000 ft |
