LM-1G2G-4CW-1KWP-SMF-ROHS Active
RF Limiter

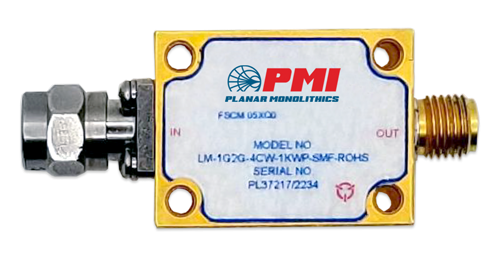

PMI Model LM-1G2G-4CW-1KWP-SMF-ROHS is an RF Limiter that operates in the 1 to 2 GHz frequency range. This limiter can handle 4 W CW and 1 kW peak (1% duty cycle, 1 µs maximum pulse width) input power and provides a maximum leakage of 16 dBm CW input. This module has a low insertion loss of 0.7 dB and a recovery time of 1 µs. Physical size is 1.0" x 0.75" x 0.38" and has SMA male/female connectors. ROHS complaint.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 2 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 2 |
| Insertion Loss (dB): | 0.7 dB Max |
| Input/Output VSWR: | 2.0:1 Max |
| Input Power: | 4 W CW Max, 1 kW Peak (1% Duty Cycle, 1 µs Max Pulse Width) |
| RF Leakage (dBm): | 16 dBm Max |
| Recovery Time: | 1 µs Max |
| P1dB Limiting Threshold (dBm): | 5 dBm Min, 1 dB Compression |
| Impedance: | 50 Ohm |
| Connectors In/Out: | Input: SMA Male Output: SMA Female |
| Size: | 1.00" x 0.75" x 0.38" |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +95 ºC |
| Stabilization Bake: | MIL-STD-883, Method 1008 Cond. B |
| Thermal Cycle: | MIL-STD-883, Method 1010 Cond. B |
| Vibration: | Diplacement (Double Amplitude):5 mm p-p 2~7 Hz, Acceleration Level (Peak):±0.5 G 7~50 Hz |
| Shock: | 15 G, 11 ± 1 ms |
| Relative Humidity: | 1 |
| Altitude: | 70, 000 ft |
