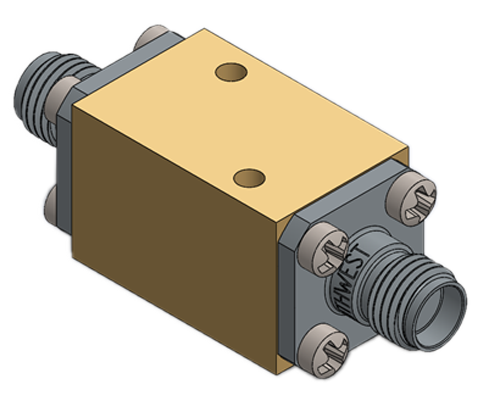

LM-1G3G-2-15-SFF Preliminary
RF Limiter
PMI Model LM-1G3G-2-15-SFF is a 1 to 3 GHz limiter featuring 2 W CW power handling, 15 dBm leakage, and 1.5 dB insertion loss.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Preliminary |
| Frequency Range (GHz): | 1 to 3 |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 3 |
| Insertion Loss (dB): | 1.5 dB Max |
| Input Power: | 2 W CW Max |
| Flat Leakage: | 15 dBm Max |
| Limiting Threshold (dBm): | 2.5 dBm Typ |
| Max VSWR: | 2.0:1 |
| Connectors In/Out: | SMA (F) |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +85 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202, Method 103 Cond. B |
| Vibration: | MIL-STD-202, Method 204 Cond. B |
| Shock: | MIL-STD-202, Method 213 Cond. B |
| Altitude: | MIL-STD-202, Method 105 Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107 Cond. A |
