LM-1M500M-C3-1 Active
Limiter

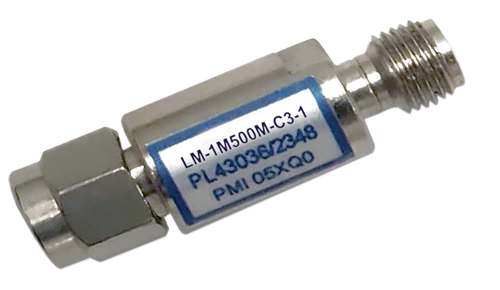

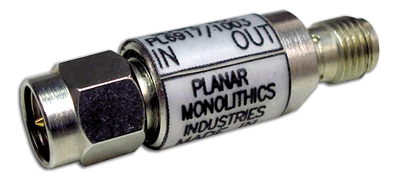

PMI Model LM-1M500M-C3-1 is a High Power Limiter that operates from 0.001 to 0.5 GHz which handles 100 W having a 100 µs pulse width and 1% duty cycle or 2 W CW. Package size is 1.31" x Ø0.375" with 2.92mm male / female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.001 to 0.5 |
| Frequency Min (GHz): | 0.001 |
| Frequency Max (GHz): | 0.5 |
| Insertion Loss (dB): | 0.1 dB Typ, 0.25 dB Max |
| Input/Output VSWR: | 1.5:1 Max |
| Input Power: | 100 W @ 1 µs Pulse Width 1% Duty Cycle, 2 W CW |
| Leakage Power: | 13.5 dBm Typ, 17 dBm Max |
| RF Leakage (dBm): | 13.5 dBm Max |
| Connectors In/Out: | 2.92mm Male / Female |
| Size: | 1.31" x Ø0.375" |
| Finish: | Albaloy Plated |
| Weight: | 1.0 oz Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 ºC to +125 ºC |
| Non-Operating Temperature: | -65 ºC to +125 ºC |
| Humidity: | MIL-STD-202F, Method 103B Cond. B |
| Vibration: | MIL-STD-202F, Method 204D Cond. B |
| Shock: | MIL-STD-202F, Method 213B Cond. B |
| Altitude: | MIL-STD-202F, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202F, Method 107D Cond. A |
