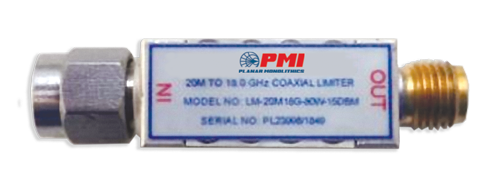

LM-20M15G-100W-15DBM Active
RF Limiter
Additional Documents
- Product Feature
- Test Report - 12/19/18
- S-Parameters
- 3D Model
- PL29845 - Unit Data
- PL29846 - Unit Data
- PL29847 - Unit Data
- PL29848 - Unit Data
- PL30679 - Unit Data
- PL30679-1 - Unit Data
- PL30680 - Unit Data
- PL30680-1 - Unit Data
- PL30681 - Unit Data
- PL30681-1 - Unit Data
- PL30681-2 - Unit Data
- PL30682 - Unit Data
- PL30682-1 - Unit Data
- PL30683 - Unit Data
- PL30684 - Unit Data
- PL30684-1 - Unit Data
- PL30685 - Unit Data
- PL30685-1 - Unit Data
- PL31453 - Unit Data
- PL34256 - Unit Data
- PL34691 - Unit Data
- PL34692 - Unit Data
- PL34693 - Unit Data
- PL35073 - Unit Data
- PL36121 - Unit Data
- PL36122 - Unit Data
- PL37111 - Unit Data
- PL37112 - Unit Data
- PL37791 - Unit Data
- PL37867 - Unit Data
- PL37868 - Unit Data
- PL37869 - Unit Data
- PL37870 - Unit Data
- PL37871 - Unit Data
- PL39365 - Unit Data
- PL40966 - Unit Data
- PL43379 - Unit Data
- PL43380 - Unit Data
- PL45586 - Unit Data
- PL45587 - Unit Data
- PL45588 - Unit Data
- PL49923 - Unit Data
- PL49924 - Unit Data
- PL50190 - Unit Data
- PL50191 - Unit Data
- PL50737 - Unit Data
- PL51724 - Unit Data
- PL51725 - Unit Data
- PL55653 - Unit Data
PMI Model LM-20M15G-100W-15DBM is a 0.02 to 15 GHz RF Limiter that can handle up to 100 W CW and 1 kW peak with an RF leakage of 15 dBm, insertion loss of 1.8 dB, and 100 ns recovery time. Unit size 0.9" x 0.38" x 0.38" (Excluding Connectors) and has SMA male / female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.02 to 15 |
| Frequency Min (GHz): | 0.02 |
| Frequency Max (GHz): | 15 |
| Insertion Loss (dB): | 1.8 dB Max @ -10 dBm Input Power |
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm Input Power |
| Input Power: | 100 W CW Max 1 KW Peak Max (1 µs PW, 0.1% Duty Cycle) |
| RF Leakage (dBm): | 15 dBm Max @ 100 W CW |
| Recovery Time: | 100 ns Max @ 1 kW Peak Power |
| P1dB Limiting Threshold (dBm): | 5 dBm Min |
| Connectors In/Out: | In: SMA Male Out: SMA Female |
| Size: | 0.90" x 0.38" x 0.38" (Excluding Connectors) |
| Finish: | Painted Blue |
| Weight: | 20 g (0.705 oz) Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
