LM-20M18G-100W-15DBM-ROHS Active
RF Limiter

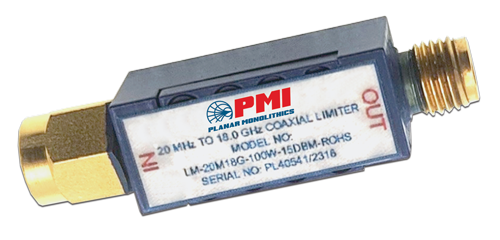

PMI Model LM-20M18G-100W-15DBM-ROHS is an RF Limiter that operates in the frequency range of 0.02 to 18 GHz capable of handling up to 100 W CW for all temperatures (-55 to +85 °C). The energy input provides leaks of 15 dBm maximum with a low insertion loss of 2.6 dB and a maximum recovery time of 100 ns. Package size of 0.9" x 0.38" square with SMA male / female connectors. ROHS Compliant.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.02 to 18 |
| Frequency Min (GHz): | 0.02 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.6 dB Max @ -10 dBm Input Power |
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm Input Power |
| Input Power: | 100 W CW Max, 1 KW Peak Min (1 µs Pulse Width, 0.1% Duty Cycle) |
| Leakage Power: | 15 dBm Max @ 100 W CW |
| RF Leakage (dBm): | 15 dBm Max @ 100 W CW |
| Recovery Time: | 100 ns Max @ 100 W Peak Power |
| P1dB Limiting Threshold (dBm): | 5 dBm Min |
| Limiting Threshold (P1dB): | 5 dBm Min |
| RF Power Handling: | 100 W CW Max @ -55 to +85 °CW, 1 KW Peak Min @ +85 °C (1 µs Pulse Width, 0.1% Duty Cycle) 100 W (1 µs, 1% Duty Cycle, 10 KHz) 100 W (10 µs, 0.1% Duty Cycle, 100 Hz) 100 W (1 µs, 0.1% Duty Cycle, 1 KHz) 100 W (40 µs, 10% Duty Cycle, 2.5 KHz) |
| Connectors In/Out: | SMA (Male / Female |
| Size: | 0.90" x 0.38" x 0.38" |
| Finish: | Painted Blue |
| Weight: | 20 g Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 °C to +85 °C |
| Non-Operating Temperature: | -55 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 103B COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Shock: | MIL-STD-202, METHOD 213B COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107D COND. A |
