LM-218-14-200W-SMF-OPT10M18G

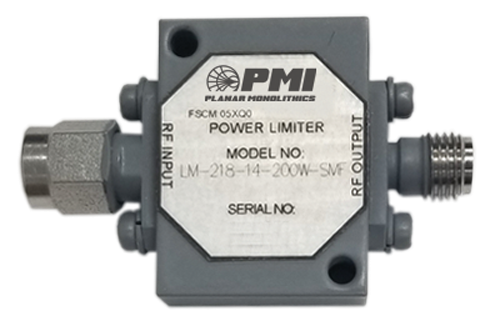

PMI Model No. LM-218-14-200W-SMF-OPT10M18G is a high power limiter that works from 10 MHz to 18.0 GHz and handles 200 watts peak power with a pulse width of 1 us and 0.1% duty cycle or 1 watt CW.

Product Specifications

General Parameters:
Status: Active
Frequency: 0.01 to 18.0 GHz
Frequency Min: 0.01 GHz
Frequency Max: 18 GHz
Insertion Loss: 2.0 dB max.
Insertion Loss (Measured): 2.0 dB max. @ Pin = -10 dBm -Measured PL18010: 1.9 dB, PL18011: 2.0 dB
Input/Output VSWR: 2.0:1 max
VSWR (Measured): 2.0:1 max - Measured PL18010: 1.6:1- PL18011: 1.9:1
Peak Power: 200 Watts, 1 µs & 0.1% Duty Cycle
Average Power: 1 Watt CW
Leakage Level: +14 dBm Max @ 1 Watt CW - Measured +10 dBm
Recovery Time: 100 ns Max @ Pin = 27 dBm - Measured 85 nsec
Low Limiting Threshold: +6 dBm Typ - Measured PL18010: +6 dBm, PL18011: +5 dBm
Connectors In/Out: SMA (M/F)
Size: 0.75" x 1.00" x 0.30"
Finish: Painted Gray
Weight: 1.5 oz. Typ
Environmental Ratings:
Operating Temperature: -55ºC to +125 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. C
Thermal Shock: MIL-STD-202F, Method 107D Cond. A
Fungus: MIL-STD-810F, Method 508.5
Salt Spray: MIL-STD-202F, Method 101D+EST Cond. B
