LM-2G18G-18-20W-1KWP-SFF Active
High Power Limiter
Buy Now
Additional Documents
- Product Feature
- Test Report - 8/9/2019
- Peak Power Test Report - 100W / 20% DC / 100us PW / 2 kHz PRF
- S-Parameters (s2p)
- 3D Model (step)
- ATP (Acceptance Test Procedure)
- QTP (Qualification Test Procedure)
- MTBF Report (Mean Time Between Failure)
- PL26738 - Unit Data
- PL26739 - Unit Data
- PL26740 - Unit Data
- PL27350 - Unit Data
- PL27351 - Unit Data
- PL27352 - Unit Data
- PL27353 - Unit Data
- PL27354 - Unit Data
- PL27630 - Unit Data
- PL28136 - Unit Data
- PL29014 - Unit Data
- PL29015 - Unit Data
- PL29016 - Unit Data
- PL29017 - Unit Data
- PL29018 - Unit Data
- PL29019 - Unit Data
- PL29020 - Unit Data
- PL29021 - Unit Data
- PL29022 - Unit Data
- PL29023 - Unit Data
- PL29024 - Unit Data
- PL29025 - Unit Data
- PL29026 - Unit Data
- PL29027 - Unit Data
- PL29049 - Unit Data
- PL29050 - Unit Data
- PL29051 - Unit Data
- PL31254 - Unit Data
- PL31255 - Unit Data
- PL32964 - Unit Data
- PL33913 - Unit Data
- PL32961 - Unit Data
- PL33676 - Unit Data
- PL33679 - Unit Data
- PL33681 - Unit Data
- PL33683 - Unit Data
- PL33684 - Unit Data
- PL33685 - Unit Data
- PL35047 - Unit Data
- PL35048 - Unit Data
- PL35050 - Unit Data
- PL35051 - Unit Data
- PL35052 - Unit Data
- PL35053 - Unit Data
- PL35055 - Unit Data
- PL35058 - Unit Data
- PL35059 - Unit Data
- PL35060 - Unit Data
- PL35061 - Unit Data
- PL35062 - Unit Data
- PL35063 - Unit Data
- PL35064 - Unit Data
- PL35065 - Unit Data
- PL35066 - Unit Data
- PL36123 - Unit Data
- PL36124 - Unit Data
- PL36125 - Unit Data
- PL36126 - Unit Data
- PL36127 - Unit Data
- PL36128 - Unit Data
- PL36129 - Unit Data
- PL36130 - Unit Data
- PL36131 - Unit Data
- PL46316 - Unit Data
- PL46317 - Unit Data
- PL59299 - Unit Data
- PL59300 - Unit Data
- PL59301 - Unit Data
- PL59328 - Unit Data
- PL59340 - Unit Data
- PL59343 - Unit Data
- PL59348 - Unit Data
- PL59349 - Unit Data
- PL59353 - Unit Data

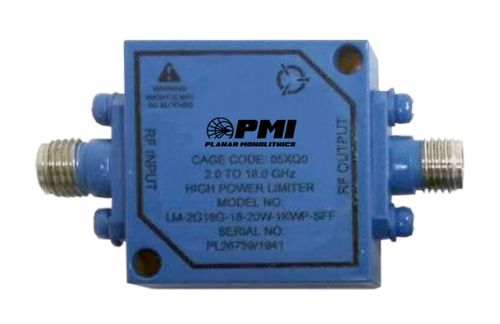

PMI Model LM-2G18G-18-20W-1KWP-SFF is a high power limiter that operates over the 2 to 18 GHz frequency range which is capable of handling an input power of 20 W CW and 1 KW peak. Housed within a compact 1.0" x 1.0 x 0.4" package, and outfitted with field replaceable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 2 to 18 |
| Frequency Min (GHz): | 2 |
| Frequency Max (GHz): | 18 |
| Insertion Loss (dB): | 2.6 dB Max @ -10 dBm Input Power |
| Input/Output VSWR: | 2.0:1 Max @ -10 dBm Input Power |
| Input Power: | 43 dBm CW Max |
| RF Leakage (dBm): | 18 dBm Max (Flat and Spike) |
| Recovery Time: | 100 ns Max |
| P1dB Limiting Threshold (dBm): | 5 dBm Min |
| Peak Input Power: | 50 dBm 10% DC, 40 µs PW (By Design 1 kW 0.1% DC 1 µs) Max |
| Connectors In/Out: | SMA Female - Removable |
| Size: | 1.0" x 1.0" x 0.4" (Excluding Connectors) |
| Finish: | Hermetically Sealed, Painted Blue, Surface Free of Paint |
| Weight: | 3.0 oz Max |
| Insertion Phase: | Measured at an input power level of 0 dBm will be within ±1.0° relative to the phase measured at input power levels less than or equal to 0 dBm |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -44 °C to +78 °C |
| Non-Operating Temperature: | -55 °C to +85 °C |
