LM-32G36G-14-20W-SMT Active
High Power Limiter

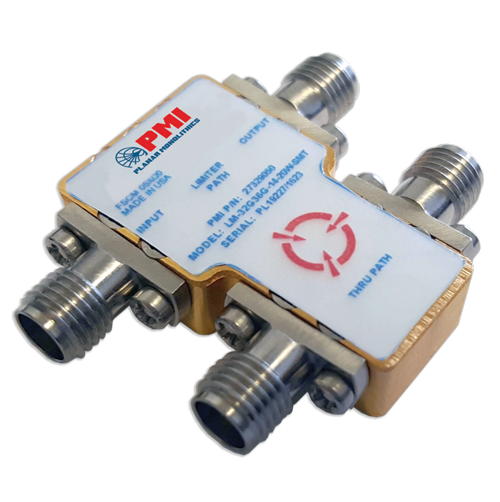

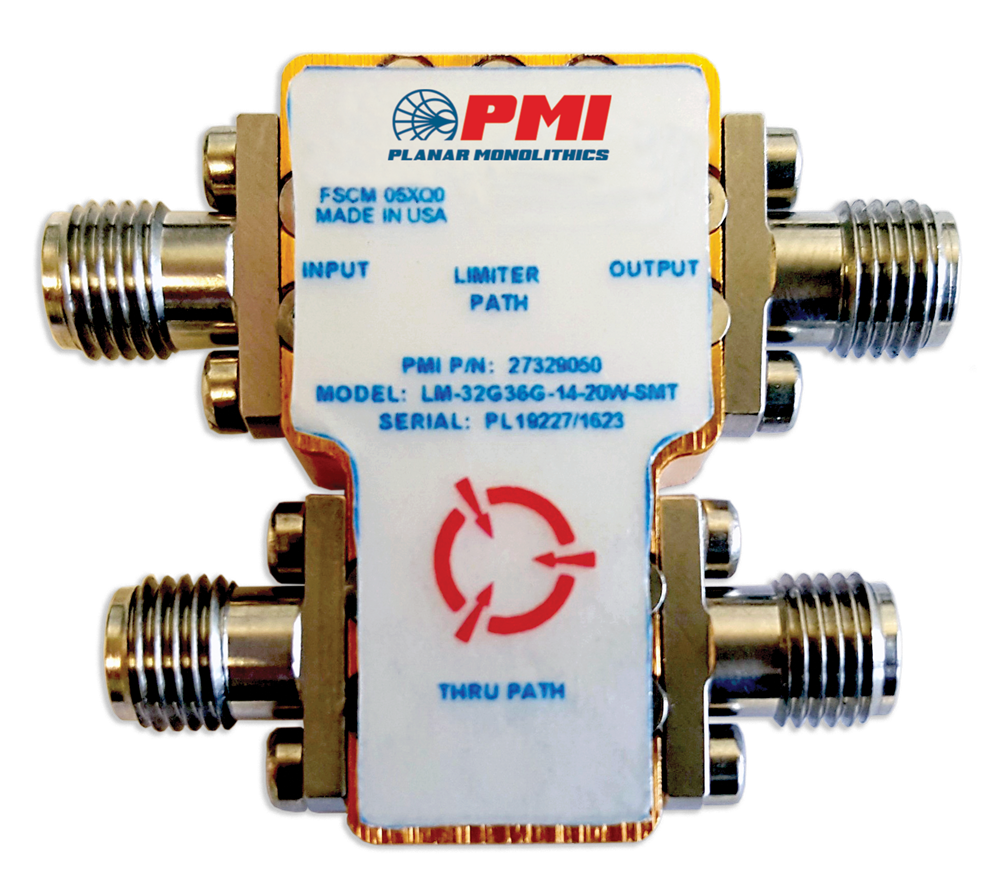

PMI Model LM-32G36G-14-20W-SMT is a high power limiter capable of withstanding an input power level of 20 W, 30 µs pulse width, and 30% duty cycle that operates in the 32 to 36 GHz frequency range. The insertion loss is 2 dB maximum, VSWR of 2.0:1 and 250 ns response time. This limiter is supplied mounted in a two-path test fixture. One path includes a surface mount limiter package, while the other is a thru path used to normalize the insertion loss of the fixture.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 32 to 36 |
| Frequency Min (GHz): | 32 |
| Frequency Max (GHz): | 36 |
| Insertion Loss (dB): | 2 dB Max |
| Input/Output VSWR: | 2.0:1 |
| Peak Power: | 20 W (43 dBm) |
| Input Power: | 20 W (Peak) |
| RF Leakage (dBm): | 14 dBm Typ |
| Recovery Time: | 250 ns Max |
| Pulse width: | 30 µs |
| Duty Cycle: | 0.3% |
| Connectors In/Out: | 2.92mm Female |
| Size: | 1.2” x 0.698” x 0.49” |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -40 ºC to +60 ºC |
| Non-Operating Temperature: | -50 ºC to +70 ºC |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
