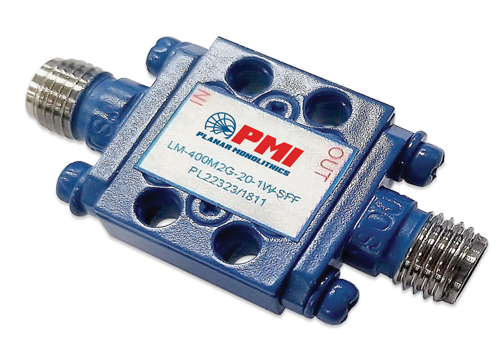

PMI Model LM-400M2G-20-1W-SFF is a coaxial limiter that operates over the 0.4 to 2 GHz frequency range. This model offers a maximum of 0.7 dB insertion loss while handling 1 W CW maximum. The compact 0.65" x 0.53" x 0.22" housing is outfitted with removable SMA female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 0.4 to 2 |
| Frequency Min (GHz): | 0.4 |
| Frequency Max (GHz): | 2 |
| Insertion Loss (dB): | 0.7 dB Max |
| Input/Output VSWR: | 2.0:1 Max |
| Power Handling: | 1 W CW Max |
| Peak Power: | 3 W Peak Max (1 µs pulse width, 0.1% duty cycle) |
| Input Power: | 1 W CW Max 3 W Peak Max (1 µs pulse width, 0.1% duty cycle) |
| Spike Leakage: | 0.1 erg Max - Measured 0.004 erg |
| RF Leakage (dBm): | 20 dBm Max |
| Recovery Time: | 250 ns Max |
| Connectors In/Out: | SMA Female - removable |
| Size: | 0.65" x 0.532" x 0.22" 16.5 mm x 13.5 mm x 5.5 mm |
| Finish: | Painted Blue |
| Weight: | 40 g [1.4 oz] |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -54 ºC to +85 ºC |
| Non-Operating Temperature: | -57 ºC to +95 ºC |
| Humidity: | MIL-E-5400 3.2.24.4, 100% RH |
| Vibration: | MIL-E-5400 3.2.24.5, Figure 2, Sheet 1 of 3, Curve III |
| Shock: | MIL-E-5400 3.2.24.6.1, 11±1 ms, 6 direction |
| Altitude: | 0 ~ 30, 000 FT |
