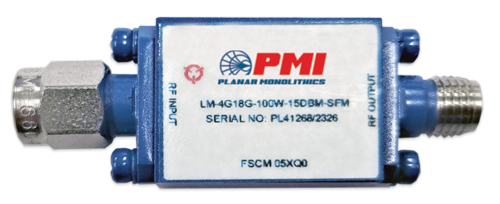

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency: | 4.0 to 18.0 GHz |
|---|
| Frequency Min: | 4.0 GHz |
|---|
| Frequency Max: | 18.0 GHz |
|---|
| Insertion Loss: | 2.5 dB Max @ -10 dBm (-54 °C & +25 °C)
2.6 dB Max @ +10 dBm (+55 °C) |
|---|
| Input/Output VSWR: | 2.0:1 Max (Input)
2.2:1 Max (Output)
@ -10 dBm Input Power |
|---|
| Input Power: | +50 dBm CW (100W) Max
+60 dBm Peak (1kW) 1% DC, 1us PW |
|---|
| RF Leakage: | +15 dBm Max |
|---|
| Recovery Time: | 100 ns Max |
|---|
| Connectors In/Out: | SMA Male/Female (Removable) |
|---|
| Size: | 15.88mm x 20.32mm x 10.16mm (Excluding Connectors)
0.625" x 0.80" x 0.40" (Excluding Connectors) |
|---|
| Finish: | Hermetically sealed, painted blue. Mounting surface free of paint. |
|---|
| Weight: | 2.0 oz Max |
|---|
| Insertion Loss @ -10 dBm Input Power: | 2.5 dB Max (-54°C and +25°C)
2.6 dB Max (+55°C) |
|---|
| VSWR @ -10 dBm Input Power: | 2.0:1 MAXIMUM (INPUT)
2.2:1 MAXIMUM (OUTPUT) |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -54 °C to +55 °C |
|---|
| Non-Operating Temperature: | -57 °C to +85 °C |
|---|
| Humidity: | 100% RH (WITH CONDENSATION) |
|---|
| Altitude: | 43,000 FT |
|---|
