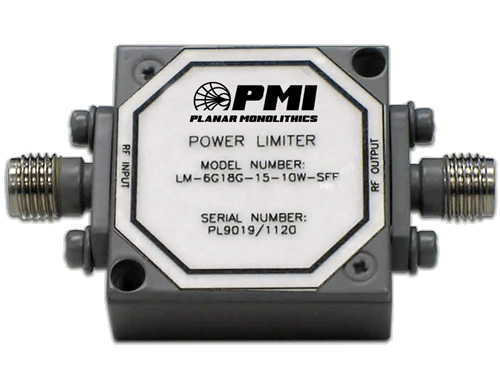

LM-6G18G-15-10W-SFF *

Buy Now

PMI Model No. LM-6G18G-15-10W-SFF is a high power limiter capable of withstanding an input power level of 10 Watts CW. The insertion loss is 2.5 dB typical, VSWR of 1.8:1 Typical. Leakage Power is +15 dBm typical. This unit is packaged in a small 1.00 X 1.00 X 0.05 housing.

Product Specifications

General Parameters:
Status: Active
Frequency: 6.0 to 18.0 GHz
Frequency Min: 6 GHz
Frequency Max: 18 GHz
Insertion Loss: 2.5 dB Typ @ 0 dBm
Insertion Loss (Measured): 2.5 dB Typ @ 0 dBm - Measured 1.71 dB
Input/Output VSWR: 1.8:1
Peak Power: 10 Watts CW
Input Power: 10 W CW (Peak)
Leakage Power: +15 dBm Typ - Measured 12.5 dBm
Connectors In/Out: SMA (F)
Size: 1.0" X 1.0" X 0.5"
Environmental Ratings:
Operating Temperature: -55 ºC to +85 ºC
Non-Operating Temperature: -65 ºC to +125 ºC
Humidity: MIL-STD-202F, Method 103B Cond. B
Vibration: MIL-STD-202F, Method 204D Cond. B
Shock: MIL-STD-202F, Method 213B Cond. B
Altitude: MIL-STD-202F, Method 105C Cond. B
Temperature Cycle: MIL-STD-202F, Method 107D Cond. A
