LM-812-15-25W-SMM Active
High-Power Limiter

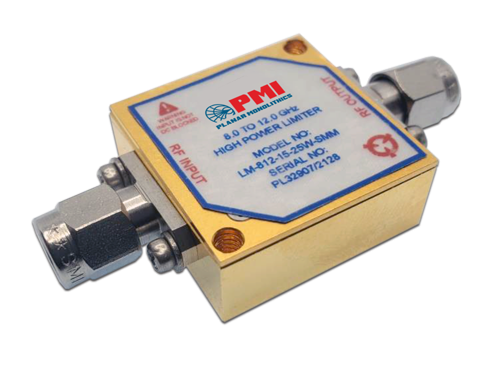

PMI Model LM-812-15-25W-SMM is a high-power limiter that operates over the 8 to 12 GHz frequency range. This model can handle an input power of 25 W CW housed within a compact 1.0" x 1.0" x 0.4" package outfitted with field replaceable SMA male connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 8 to 12 |
| Frequency Min (GHz): | 8 |
| Frequency Max (GHz): | 12 |
| Insertion Loss (dB): | 1.8 dB Max |
| Input/Output VSWR: | 1.7:1 dB Max 1.5:1 Goal |
| Input Power: | 25 W CW Max |
| RF Leakage (dBm): | +15 Typ |
| Recovery Time: | 100 ns Typ |
| Peak Input Power: | 250 W Max |
| Connectors In/Out: | SMA Male |
| Size: | 25.4 mm x 25.4 mm x 10.16 mm 1.00" x 1.00" x 0.40" |
| Finish: | Gold Plated |
| Insertion Loss @ -20 dBm Input Power: | 1.8 dB Max |
| VSWR @ -20 dBm Input Power: | 1.7:1 dB Max 1.5:1 Goal |
| RF Input Power: | 25 W CW Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | -55 °C to +85 °C |
| Non-Operating Temperature: | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, METHOD 1038 COND. B |
| Vibration: | MIL-STD-202, METHOD 204D COND. B |
| Shock: | MIL-STD-202, METHOD 2138 COND. B |
| Altitude: | MIL-STD-202, METHOD 105C COND. B |
| Temperature Cycle: | MIL-STD-202, METHOD 107A COND. A |
