LM-8D5G10D5G-1W-13DBM-SFM Active
Low Leakage Limiter
Buy Now
Additional Documents
- Product Feature
- Test Report - 5/5/23
- 3D Model
- S- Parameters
- PL40346 - Unit Data
- PL40347 - Unit Data
- PL40348 - Unit Data
- PL40349 - Unit Data
- PL40350 - Unit Data
- PL40371 - Unit Data
- PL40580 - Unit Data
- PL40581 - Unit Data
- PL40582 - Unit Data
- PL43519 - Unit Data
- PL43520 - Unit Data
- PL43980 - Unit Data
- PL43981 - Unit Data
- PL43981-1 - Unit Data
- PL43982 - Unit Data
- PL43983 - Unit Data
- PL43984 - Unit Data
- PL43985 - Unit Data
- PL43986 - Unit Data
- PL43988 - Unit Data
- PL43989 - Unit Data
- PL43990 - Unit Data
- PL43991 - Unit Data
- PL43992 - Unit Data
- PL43993 - Unit Data
- PL43994 - Unit Data
- PL43995 - Unit Data
- PL43996 - Unit Data
- PL43997 - Unit Data
- PL45341 - Unit Data
- PL45342 - Unit Data
- PL45343 - Unit Data
- PL45343-1 - Unit Data
- PL45344 - Unit Data
- PL45345 - Unit Data
- PL45346 - Unit Data
- PL45347 - Unit Data
- PL45348 - Unit Data
- PL45349 - Unit Data
- PL45350 - Unit Data
- PL45351 - Unit Data
- PL45352 - Unit Data
- PL45353 - Unit Data
- PL45354 - Unit Data
- PL45355 - Unit Data

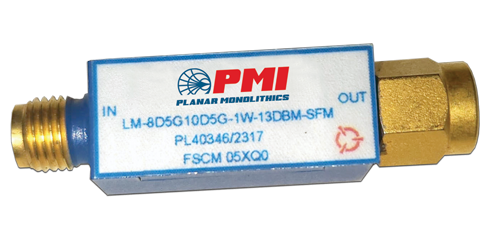

PMI Model LM-8D5G10D5G-1W-13DBM-SFM is a low leakage limiter operating over the 8.5 to 10.5 GHz frequency range. This model offers excellent temperature stability with exceptionally low loss. Package size is 0.9" x 0.38" sq with SMA Male / female connectors.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 8.5 to 10.5 |
| Frequency Min (GHz): | 8.5 |
| Frequency Max (GHz): | 10.5 |
| Insertion Loss (dB): | 1.6 dB Max |
| Input/Output VSWR: | 1.7:1 dB Max |
| Input Power: | 30 dBm Max (1 W CW) |
| RF Leakage (dBm): | 13 dB Max CW |
| P1dB Limiting Threshold (dBm): | 10 Typ |
| Connectors In/Out: | Output: SMA Male Input SMA Female |
| Size: | 0.90" x 0.38" sq |
| Finish: | Painted Blue |
| Weight: | 2 oz Max |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Operating Temperature: | 0 °C to +50 °C |
| Non-Operating Temperature: | -30 °C to +60 °C |
| Humidity: | 95% Max- NOT CONDENSATION |
| Vibration: | 2 to 7Hz total amplitude 5.0mm / 7 to 50Hz: Speed of acceleration 4.9m/s^2 |
| Shock: | 1) Operating: 68m/s^2, 10ms 2)Non-Destructive: 98m/s^2, 10ms |
