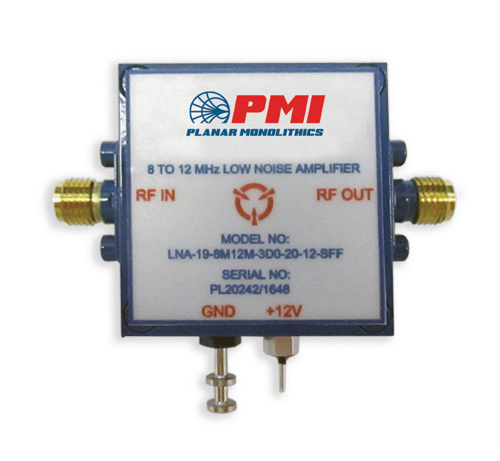

| General Parameters: |
|---|
| Status: | Active |
|---|
| Frequency Min: | 0.008 GHz |
|---|
| Frequency Max: | 0.012 GHz |
|---|
| Gain: | 19 dB Min. 20 dB Typ. |
|---|
| Gain (Measured): | 19 dB Min. 20 dB Typ. - Measured 20.96 dB |
|---|
| Noise Figure: | 4.5 dB Max. - Measured 2.77 dB |
|---|
| Frequency Range: | 0.008 to 0.012 GHz |
|---|
| Connectors: | SMA Female |
|---|
| Size: | 31.75 mm x 31.75 mm x 14.30mm, 1.25" x 1.25" x 0.563" |
|---|
| Finish: | Blue Epoxy |
|---|
| VSWR In/Out: | 1.5:1 Max - Measured 1.47:1 |
|---|
| OP1dB: | 20 dBm Min. - Measured 23.04 dBm |
|---|
| OIP3: | 37 dBm Min. - Measured 39l17 dBm |
|---|
| DC Voltage: | +12 VDC |
|---|
| DC Current Draw: | 150 mA typ. |
|---|
| Environmental Ratings: |
|---|
| Operating Temperature: | -55 ºC to +85 ºC |
|---|
| Non-Operating Temperature: | -65 ºC to +125 ºC |
|---|
| Humidity: | MIL-STD-202, Method 103B Cond. B |
|---|
| Shock: | MIL-STD-202, Method 213B Cond. B |
|---|
| Altitude: | MIL-STD-202, Method 105C Cond. B |
|---|
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
|---|
