LNA-20-17-5-SFF Active
Low Noise Amplifier

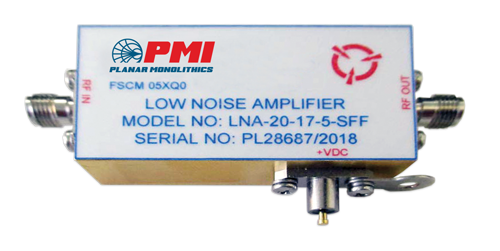

PMI Model LNA-20-17-5-SFF is a low noise amplifier that operates over the frequency range of 1 to 7 GHz with a minimum gain of 20 dB and a noise figure of 5 dB. This model's housing is 2.5" x 1.0" x 0.5" and is outfitted with SMA female connectors. This is a form, fit, function to Loral 342108.
Product Specifications
| General Parameters: | |
|---|---|
| Status: | Active |
| Frequency Range (GHz): | 1 to 7 GHz |
| Frequency Min (GHz): | 1 |
| Frequency Max (GHz): | 7 |
| Gain (dB): | 20 dB Min, 26 dB Max |
| Gain Flatness: | ±2.0 dB |
| Noise Figure (dB): | 5 dB |
| OP1dB (dBm): | 22 dBm |
| VSWR In/Out: | 2.0:1 Max |
| DC Voltage (VDC): | +15 VDC |
| DC Current (mA): | 900 mA |
| Minimum Third Order Intercept Point: | 32 dBm |
| Typical Saturated Output Power: | 24 dBm |
| Harmonics: | -12 dBc |
| Non-Harmonic Spurious: | -50 dBc |
| Stability: | Unconditional |
| Connectors: | SMA Female - removable |
| Size: | 2.50" x 1.00" x 0.50" |
| Cooling: | Convection |
| Finish: | Gold Plated |
| Export Classification (ECCN): | EAR99 |
| Environmental Ratings: | |
| Temperature (Operating): | 3 °C to +70 °C |
| Temperature (Storage): | -65 °C to +125 °C |
| Humidity: | MIL-STD-202, Method 103B Cond. B |
| Shock: | MIL-STD-202, Method 213B Cond. B |
| Vibration: | MIL-STD-202, Method 204D Cond. B |
| Altitude: | MIL-STD-202, Method 105C Cond. B |
| Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
