General Parameters: |
Status: | Preliminary |
Frequency Range: | 0.01 to 8.0 GHz |
Frequency Min: | 0.01 GHz |
Frequency Max: | 8.0 GHz |
Gain: | 42 dB typ. @ 10 MHz 41 dB typ. @ 4.0 GHz 40 dB typ. @ 8.0 GHz |
Noise Figure: | 2.0 dB typ., 2.5 dB max. |
Gain Flatness: | ±1.5 dB typ. |
OP1dB: | +20 dBm typ. |
VSWR In/Out: | 1.8:1/2.5:1 typ. |
DC Voltage Supply: | +9 V min., +12 V typ., +15 V max. |
DC Current Draw: | 160 mA typ. |
RF Connectors: | SMA (F) |
OIP3: | +30 dBm typ. |

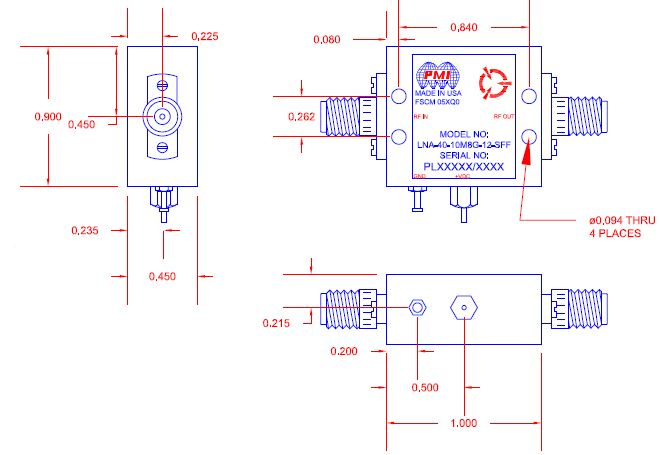

Size: | 1.00" x 0.90" x 0.45" |
Noise Figure @ 3.0 GHz: | 2.0 dB typ., 2.5 dB max. |
Reverse Isolation @ 3.0 GHz: | -50 dB typ. |
Weight: | 17 g |
Environmental Ratings: |
Temperature (Operating): | -40°C to +85°C |
Temperature (Storage): | -65°C to +125°C |
Humidity: | MIL-STD-202, Method 103B Cond. B |
Shock: | MIL-STD-202, Method 213B Cond. B |
Vibration: | MIL-STD-202, Method 204D Cond. B |
Altitude: | MIL-STD-202, Method 105C Cond. B |
Temperature Cycle: | MIL-STD-202, Method 107D Cond. A |
