LP100M-CD-MLL Active

Lowpass Filters

LP100M-CD-MLL
Product Feature

Quantic PMI Model LP100M-CD-MLL is a lowpass filter that has a passband frequency of DC to 0.1 GHz. Offers very high Q with broadband performance. This unit has very low loss and is ideal for eliminating broadband harmonics. Package size is 1.22" x 0.59" x 0.031".

Product Specifications

General Parameters:
Status: Active

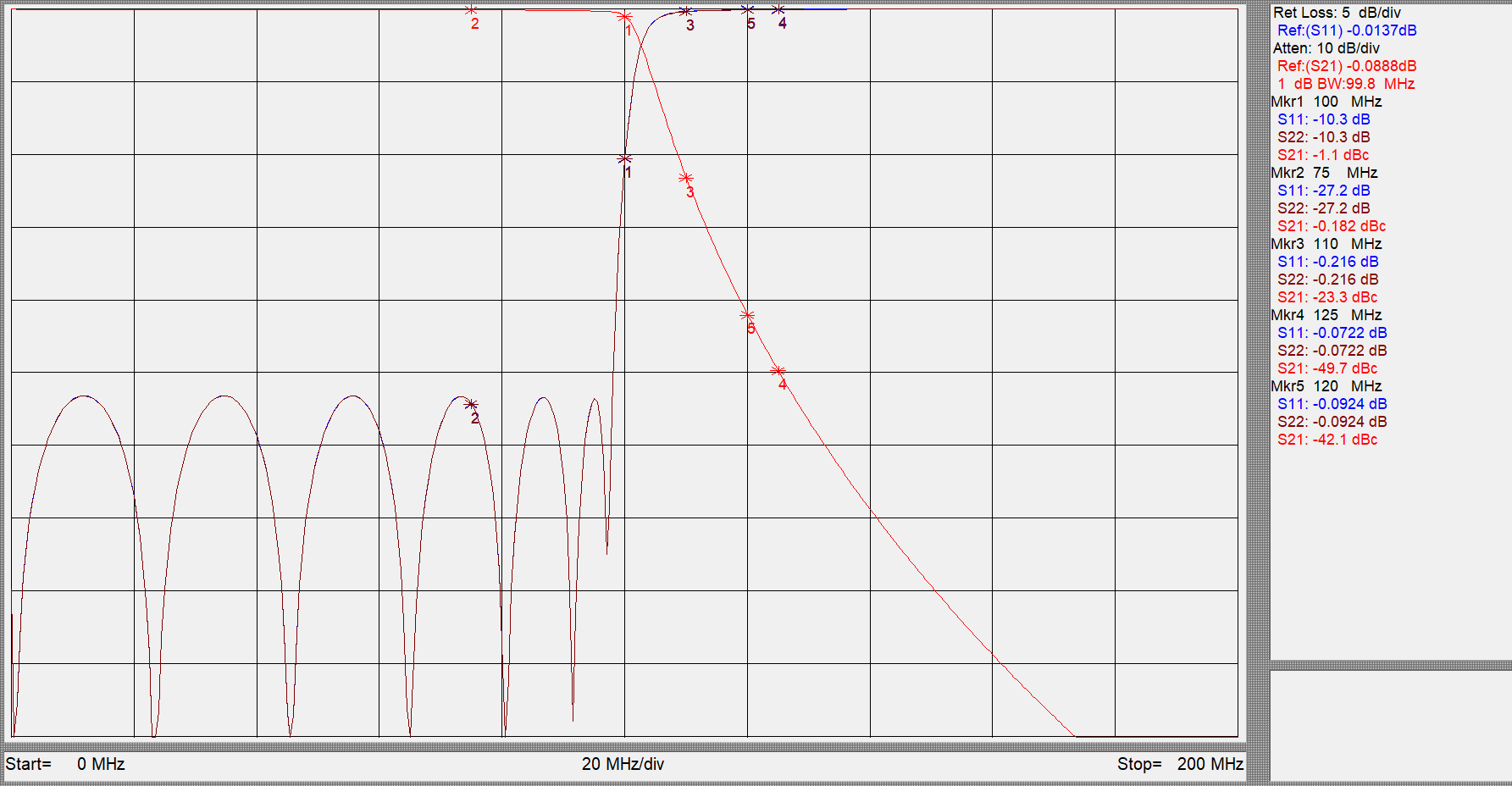

Passband (GHz): DC to 0.1
Cut-Off Frequency (GHz): 0.1
Passband Insertion Loss: 1 dB Typ
Return Loss: 12 dB Typ (In the Passband)
Rejection: 20 dB Typ @ 0.11 GHz,
40 dB Typ @ 0.12 GHz,
50 dB Typ @ 0.2 GHz

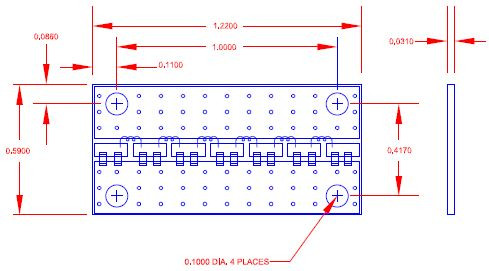

Size: 1.220" x 0.590" x 0.031"
Finish: Backside Copper
Export Classification (ECCN): EAR99
Environmental Ratings:
Temperature: -40 °C to +70 °C
Non-Operating: -40 °C to +100 °C
